Description

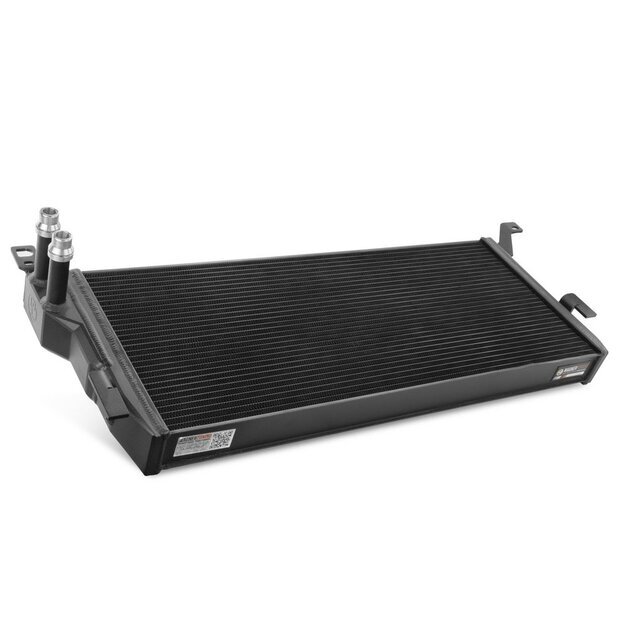

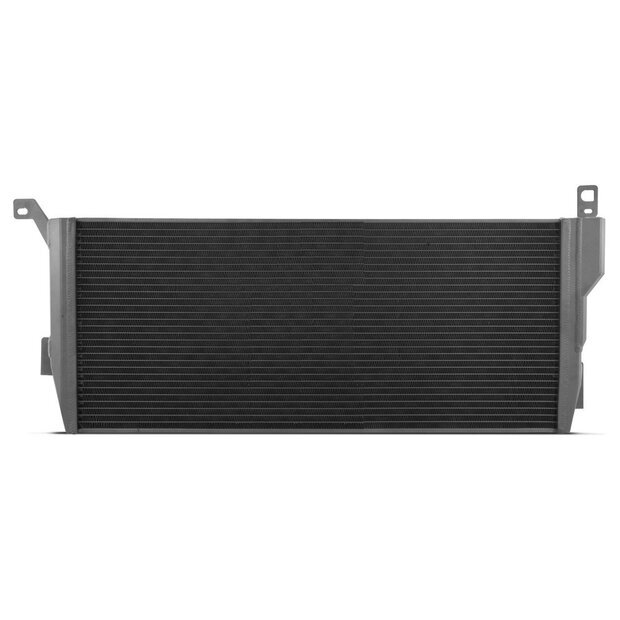

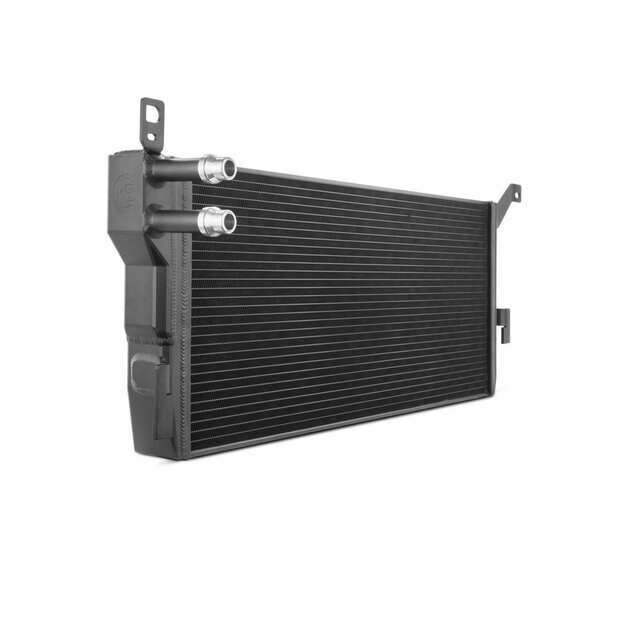

VW T6 / T6.1 2.0 TDI Competition Radiator Kit ? Wagner Tuning
Cooler water. Cooler charge air. More stable temperatures. The 2.0 TDI in the VW T6 / T6.1 cools charge air indirectly via a dedicated low-temperature water circuit. Lower water temperature means better charge-air cooling. That is exactly what the Wagner Tuning Competition radiator kit does: +30% cooler volume (12.4 L vs. 9.5 L) and +26% frontal area (2208 cm² vs. 1750 cm²).
Why this kit is the right choice for the T6 / T6.1
+30% MORE VOLUME
Competition racing core with 12.4 litres vs. 9.5 litres OEM ? more coolant and a longer thermal buffer.
+26% FRONTAL AREA
2208 cm² vs. 1750 cm² OEM ? maximum heat transfer without starving the engine radiator behind it.
INDIRECT CHARGE-AIR COOLING
Cooler water in the LT circuit means cooler, denser charge air ? especially under load and during long runs.
NEARLY PLUG & PLAY
Front-mounted radiator, black coated, heat-conductive anti-corrosion finish. Straightforward install with the instructions.
Technical highlights
- Application: low-temperature circuit / indirect charge-air cooling
- Competition racing core
- Volume: 12.4 litres (+30% vs. OEM 9.5 L)
- Frontal area: 2208 cm² (+26% vs. OEM 1750 cm²)
- WT dimensions: 710 × 311 × 56 mm
- OEM dimensions: 714 × 245 × 54 mm
- Heat-conductive anti-corrosion coating, black
- Airflow to the engine radiator behind it is preserved
OEM vs. Wagner Tuning
- OEM: 714 × 245 × 54 mm · 9.5 L · 1750 cm²
- Wagner Tuning: 710 × 311 × 56 mm · 12.4 L (+30%) · 2208 cm² (+26%)
Fitment
VW T6 2.0 TDI 62?110 kW / 84?150 hp (2016?2019)
VW T6.1 2.0 TDI 66?110 kW / 84?150 hp (from 2019)
VW T6 2.0 BiTDI 146?150 kW / 199?204 hp (2016?2019)
VW T6.1 2.0 BiTDI 146?150 kW / 199?204 hp (from 2019)
Package contents
1× front-mounted radiator, black coated (low-temperature circuit)
Availability note: In some cases the item is not in stock and is ordered directly from the manufacturer ? delivery may then take 1?2 additional working days.
