Arlows V-Band Ersatzschelle mit Schnellverschluß 3,5" / 89mm ( Edelstahl )

Arlows V-Band Ersatzschelle mit Schnellverschluß 3,5" / 89mm ( Edelstahl )

26,90 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	26,09 €*
3	25,56 €*
5	24,75 €*

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

V-BAND 89 MM AR2147

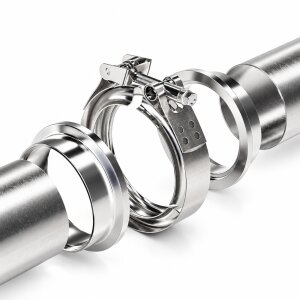

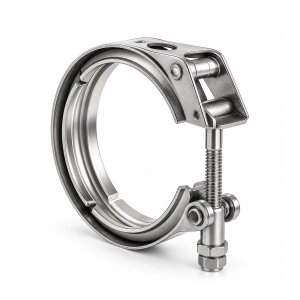

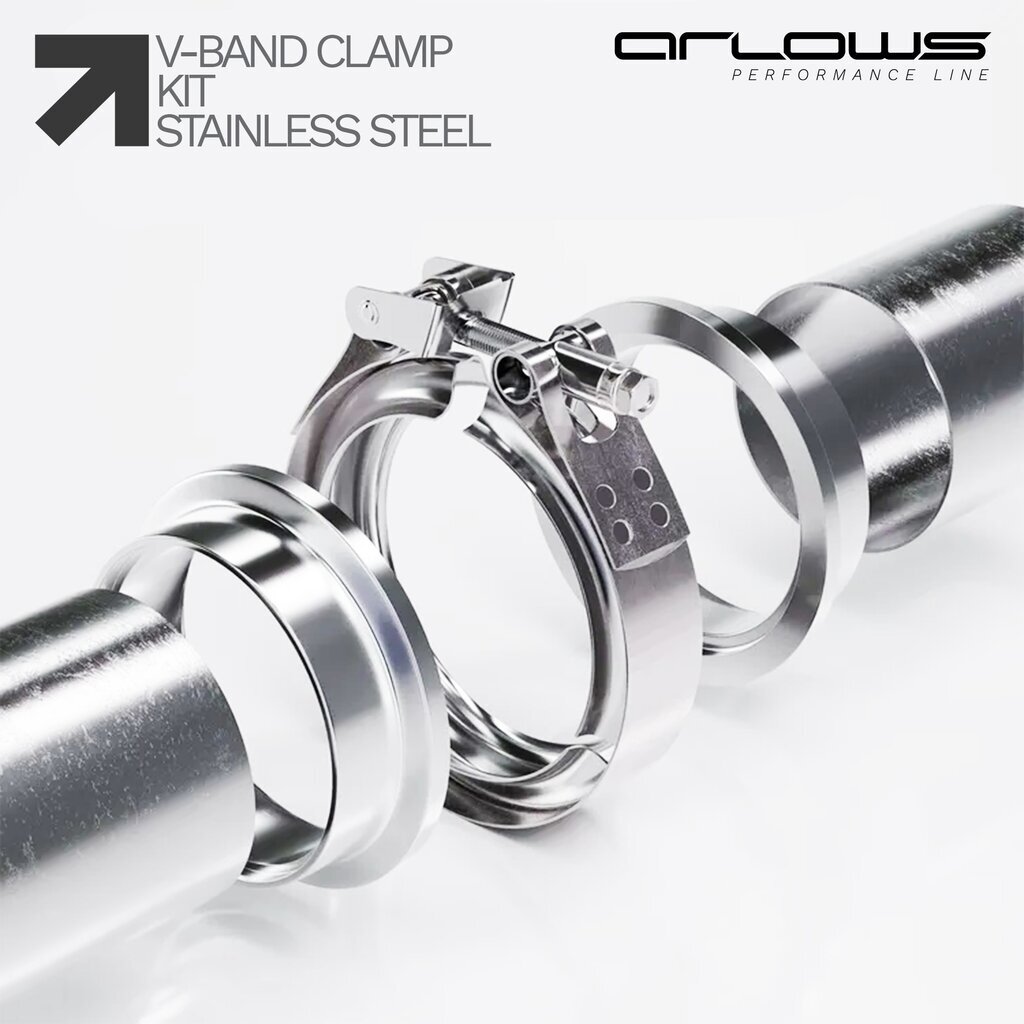

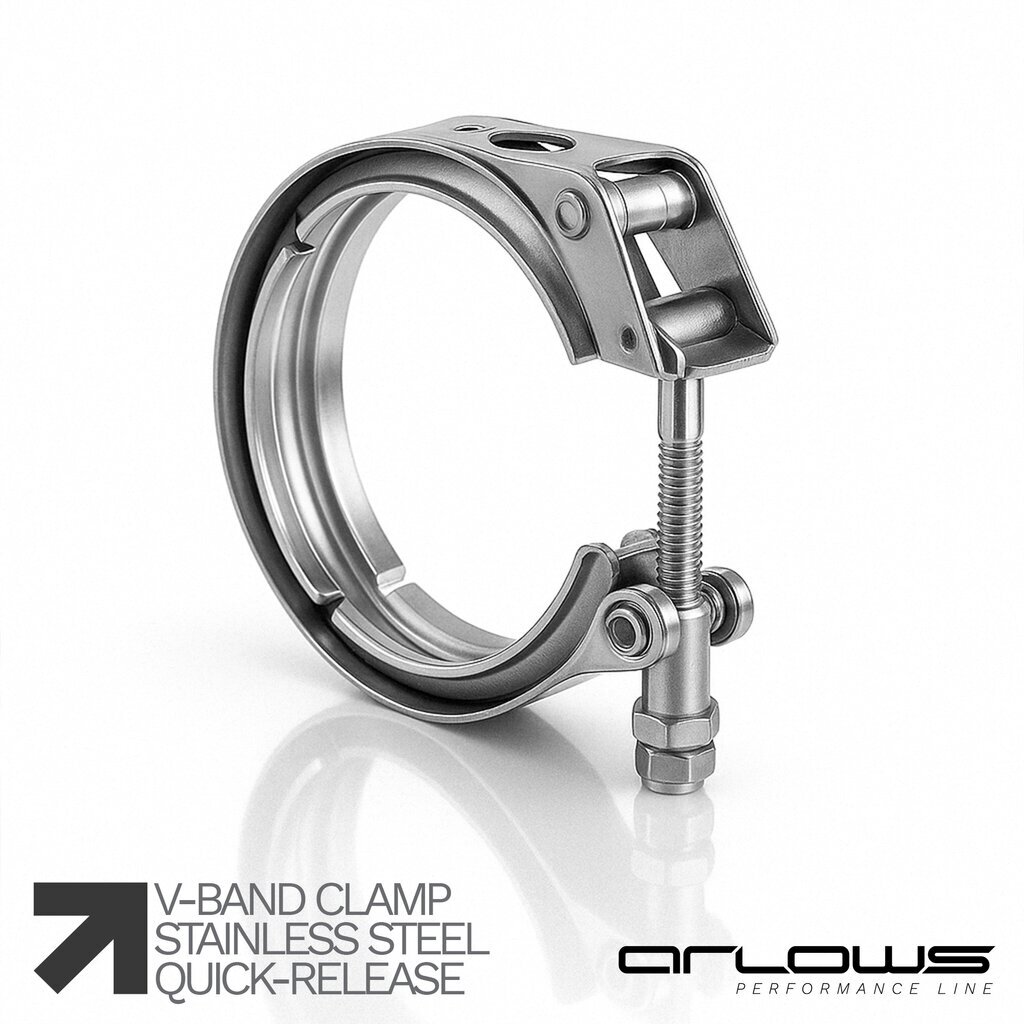

Arlows V-Band clamp 89 mm / 3,5 in

Replacement clamp for V-band flanges 89 mm / 3,5 in.
Replacement clamp for V-band flanges 89 mm / 3,5 in. Stainless, reusable, for exhaust and turbo. Quick release for tight spots.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

QUICK RELEASE

Open and close where a spanner barely fits.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	AR2147
Fits tube	89 mm / 3,5 in
Material	stainless 1.4301 / 304
Build	clamp
Latch	quick release
Clamp OD	approx. 120 mm
Thread	M8
Spanner	13 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding. Tighten the clamp only after it has cooled, thread M8. Do not mix aluminium and stainless in the same weld.
