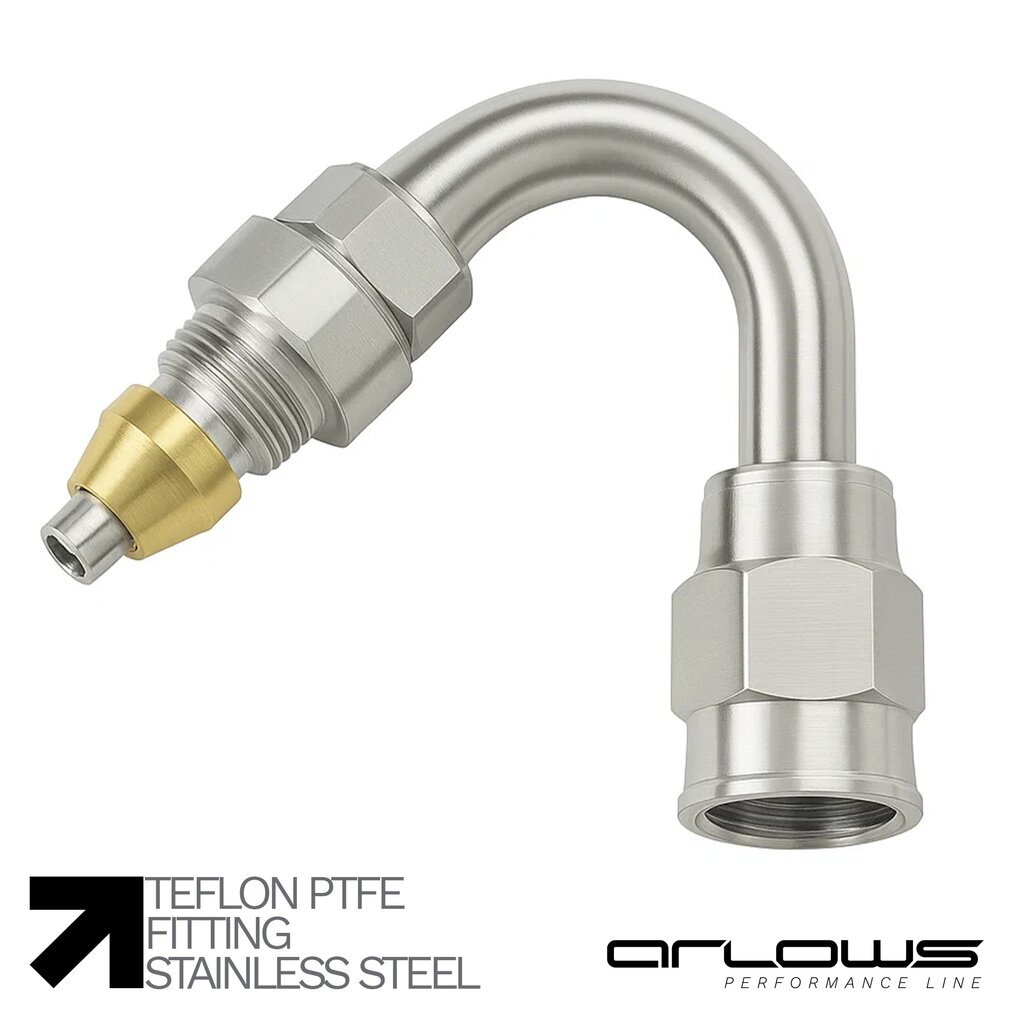

Arlows PTFE Stainless Steel AN Dash Fitting
Stainless outside. PTFE inside. For Teflon hose.
AN fitting in stainless steel with a Teflon liner and sealing olive. For fuel, oil, hydraulics and brake lines on PTFE hose AR9106 / AR9107. Corrosion resistant in the bay, winter and salt. Lighter alu is AR8886 blue and AR8887 black. Do not use this on classic steel flex AR8394.
STAINLESS STEEL
More corrosion resistance than alu. Built for a wet underbody, brake circuits and aggressive media.
PTFE + OLIVE
Smooth Teflon liner, precise olive. Seals under load, low friction in the fluid.
5 ANGLES
Straight, 45°, 90°, 135°, 180°. Pick Dash and angle above.
-70 °C TO +250 °C
360° swivel. The hose stays put when you tighten the nut.
Use cases
- Fuel: E85, petrol, diesel, methanol, feed and return, rail
- Oil and hydraulics: oil cooler, catch can, pressure oil, power steering
- Brakes: PTFE steel flex on track days, where stainless comes first
- Car, van, marine, industry: wet, salty, hot environments
Technical data
| Dash | Thread | ID | OD | Working | Burst |
|---|---|---|---|---|---|
| Dash 3 | 3/8-24 UNF | 3.6 mm | 6.8 mm | 2900 PSI | 7000 PSI |
| Dash 4 | 7/16-20 UNF | 5.4 mm | 8.6 mm | 2900 PSI | 7000 PSI |
| Dash 6 | 9/16-18 UNF | 8.1 mm | 11.6 mm | 2900 PSI | 7000 PSI |
| Dash 8 | 3/4-16 UNF | 10.0 mm | 13.8 mm | 2900 PSI | 7000 PSI |
| Dash 10 | 7/8-14 UNF | 13.0 mm | 16.3 mm | 2900 PSI | 7000 PSI |
| Dash 12 | 1 1/16-12 UNF | 16.5 mm | 20.1 mm | 2900 PSI | 6000 PSI |
- Part number: AR8888
- Material: stainless steel
- Seal: PTFE / Teflon liner + olive
- Angles: straight, 45°, 90°, 135°, 180°
- Temperature: -70 °C to +250 °C
- Hose: PTFE Teflon AR9106 / AR9107 only
- Not for: classic steel flex AR8394 (use the AR8369 series)
- Lighter option: PTFE alu AR8886 blue / AR8887 black
Fitment
Cut the hose square, assemble olive and fitting per the PTFE instructions. Same Dash size on hose and fitting. Use the right tools so the thread and olive are not damaged. Too tight kills the seal, too loose leaks. Do not use classic AN fittings without a PTFE olive here. Cover cut braid ends after the cut. Check joints for leaks on a schedule.
| Item number: | AR8888 |
