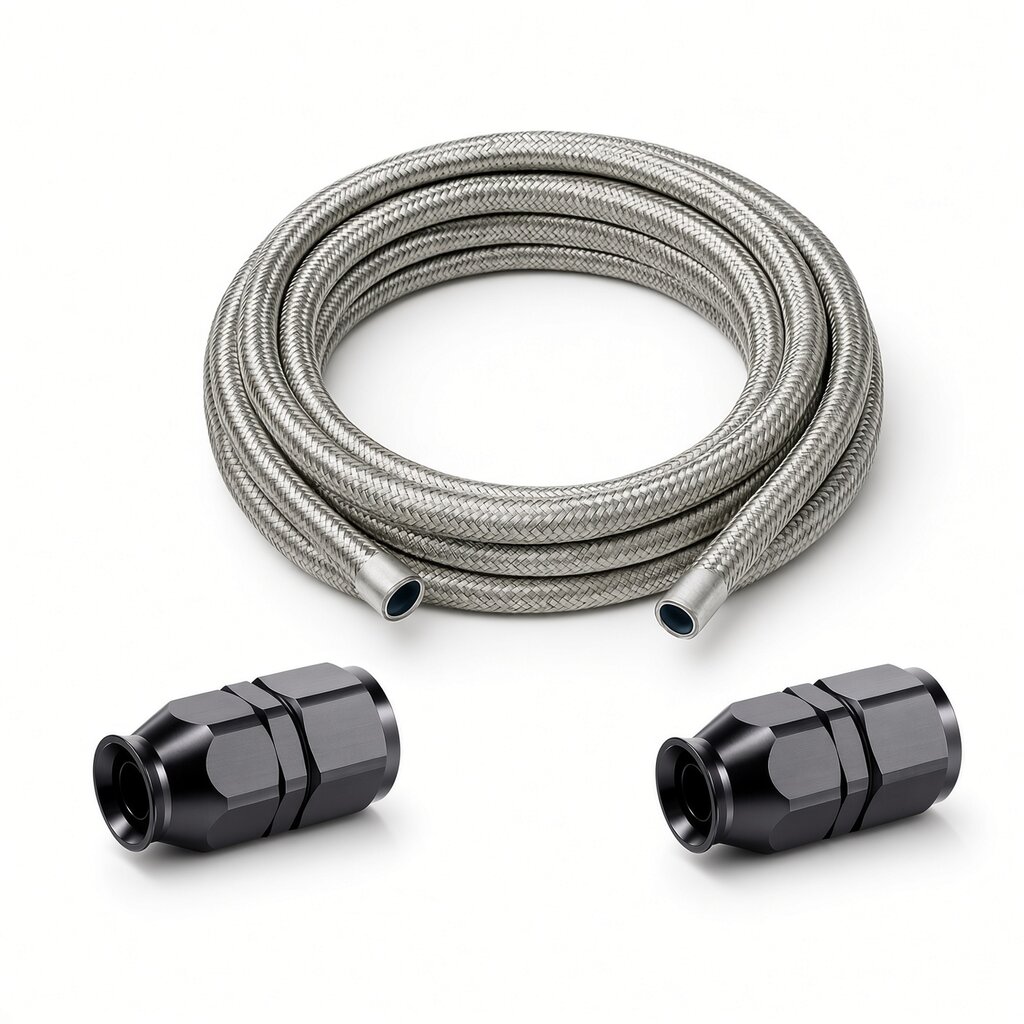

Arlows PTFE Braided Hose Set Dash 16 black, 1 m, 2x straight

Arlows PTFE Braided Hose Set Dash 16 black, 1 m, 2x straight. PTFE braided hose and PTFE aluminium fittings in one size, for self-assembly. Do not mix with standard AN fittings, push-on fittings or the nylon-covered PTFE hose.

Your advantages at a glance

• Matched PTFE set instead of separate parts - Dash 16 throughout
• PTFE braided hose with PTFE aluminium fittings in black
• 1 metre of hose, packed as one set
• Straight ends for a direct connection.
• Not for push-on hose and not for standard braided hose

Scope of delivery

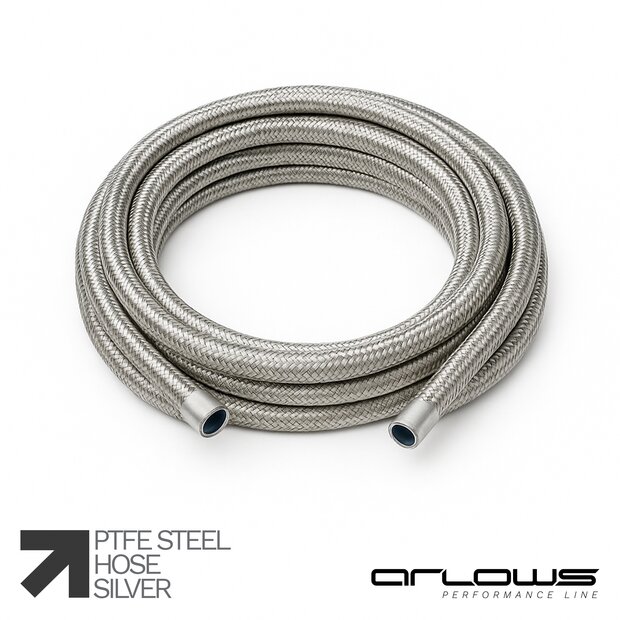

• 1x AR12069 - Arlows 1 Meter PTFE / Teflon Stahlflexschlauch Dash 16 (1-5/16-12UNF)

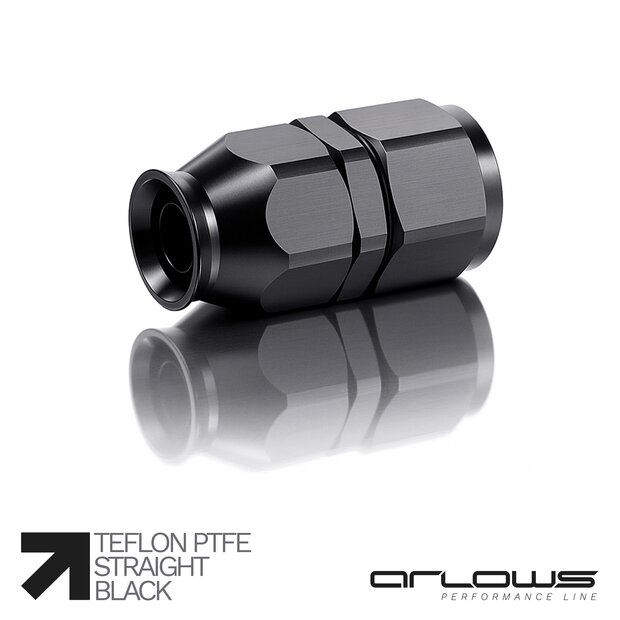

• 1x AR12055 - Arlows PTFE Alu Fitting Schwarz Dash 16 Gerade
• 1x AR12055 - Arlows PTFE Alu Fitting Schwarz Dash 16 Gerade

Technical data

• System: PTFE / Teflon braid
• Dash: Dash 16
• Port thread: 1 5/16-12 UNF
• Fitting colour: Black
• Angle: 2x straight
• Hose length: 1 metre
• Nominal inner diameter: 22.20 mm
• Fitting material: aluminium, anodized, PTFE type
• Hose: PTFE braided hose
• Supply condition: set, self-assembly

Assembly

The set is supplied unassembled. Hose and fittings are the PTFE version of the same Dash size. Colour refers to the fittings. A spare olive is not included.

Not included

• Spare olive, adapters, clamps
• Push-on fitting or standard aluminium Dash fitting
• Nylon-covered PTFE hose
• Extra angles or a second hose length
