Arlows 1 Meter PTFE / Teflon Stahlflexschlauch Dash 16 (1-5/16-12UNF)

44,90 €

44,90 € per 1 m

incl. 19% VAT , plus (Paketversand)

From	Unit price / Meter (1,00 m)	Base price
2	43,10 €*	43,10 € per m
5	41,76 €*	41,76 € per m
10	40,41 €*	40,41 € per m
15	38,17 €*	38,16 € per m

thread

Meter

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

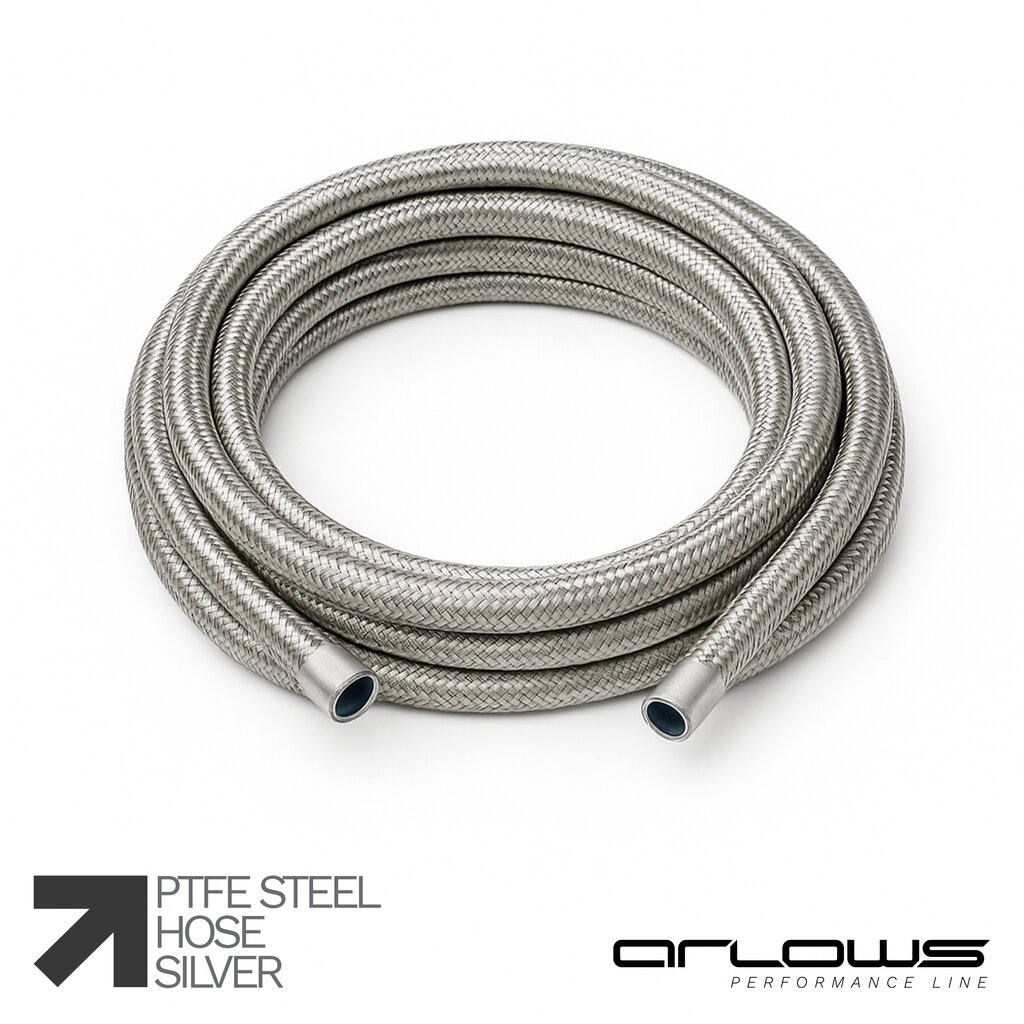

ARLOWS 1 METER PTFE HYDRAULIC HOSE WITH STAINLESS STEEL BRAID

Flexible. Extremely durable.
Stainless steel braid against stones & abrasion.

The Arlows PTFE Hydraulic Hose with Stainless Steel Braid is the premium solution for DIY line building. The highly flexible PTFE inner hose combined with a robust stainless steel braid offers maximum resistance to stone chips, abrasion and UV radiation.

Perfectly suited for E85, gasoline, diesel, methanol, oil, air and many other media. Temperature range from -50 °C to +230 °C. The silver stainless steel braid provides maximum durability and a professional look.

Your advantages at a glance:

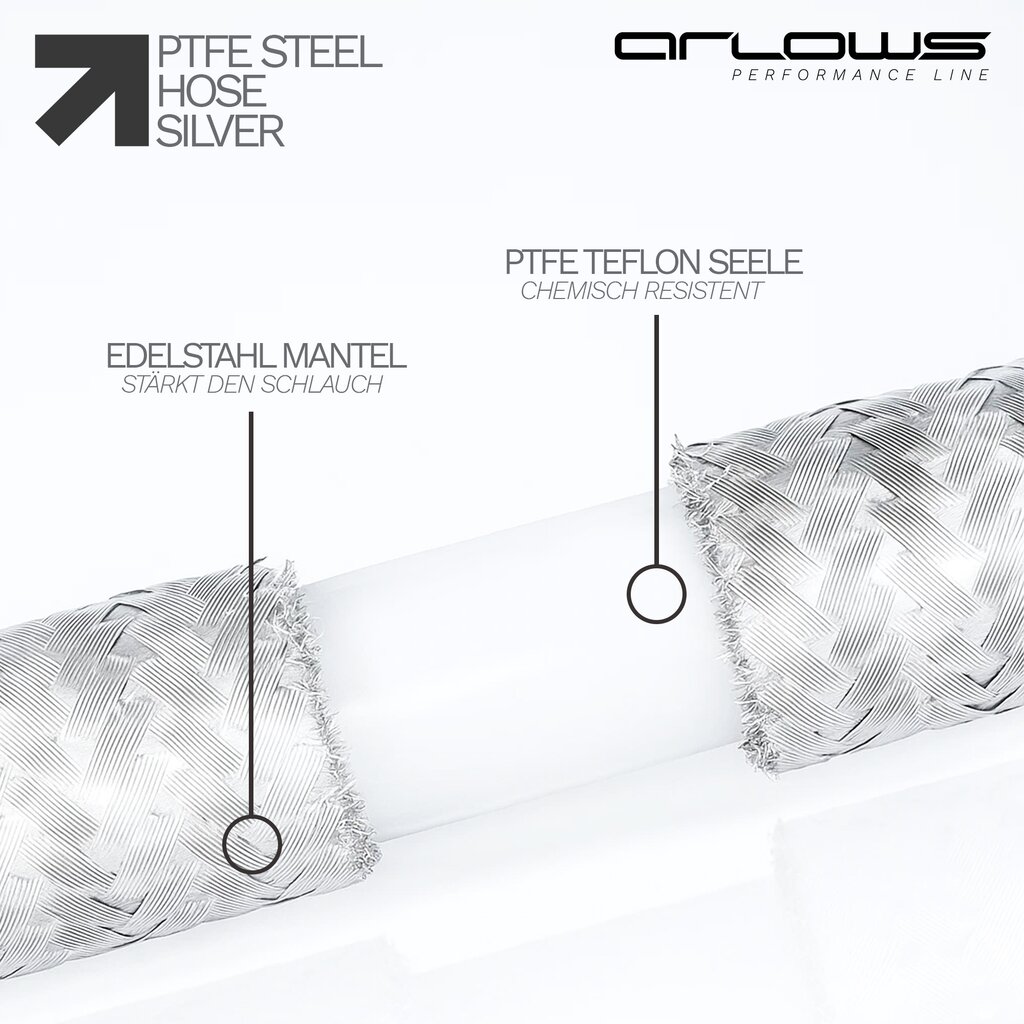

- PTFE inner hose with stainless steel braid

- High protection against stone chips, abrasion and UV radiation

- Extremely flexible and pressure-resistant

- Temperature range -50 °C to +230 °C

- Suitable for E85, gasoline, diesel, methanol, oil, air etc.

- 1 meter ? simply order the required quantity

Technical Specifications

Dash	Thread	ID	OD	Operating Pressure	Burst Pressure
Dash 4	7/16 - 20 UNF	5.56 mm	11.13 mm	2900 PSI	7000 PSI
Dash 6	9/16 - 18 UNF	8.73 mm	13.89 mm	2900 PSI	7000 PSI
Dash 8	3/4 - 16 UNF	11.12 mm	16.28 mm	2900 PSI	7000 PSI
Dash 10	7/8 - 14 UNF	14.27 mm	20.24 mm	2900 PSI	7000 PSI
Dash 12	1 1/16 - 12 UNF	17.47 mm	23.82 mm	2900 PSI	6000 PSI

Note: Matching PTFE fittings are sold separately.
