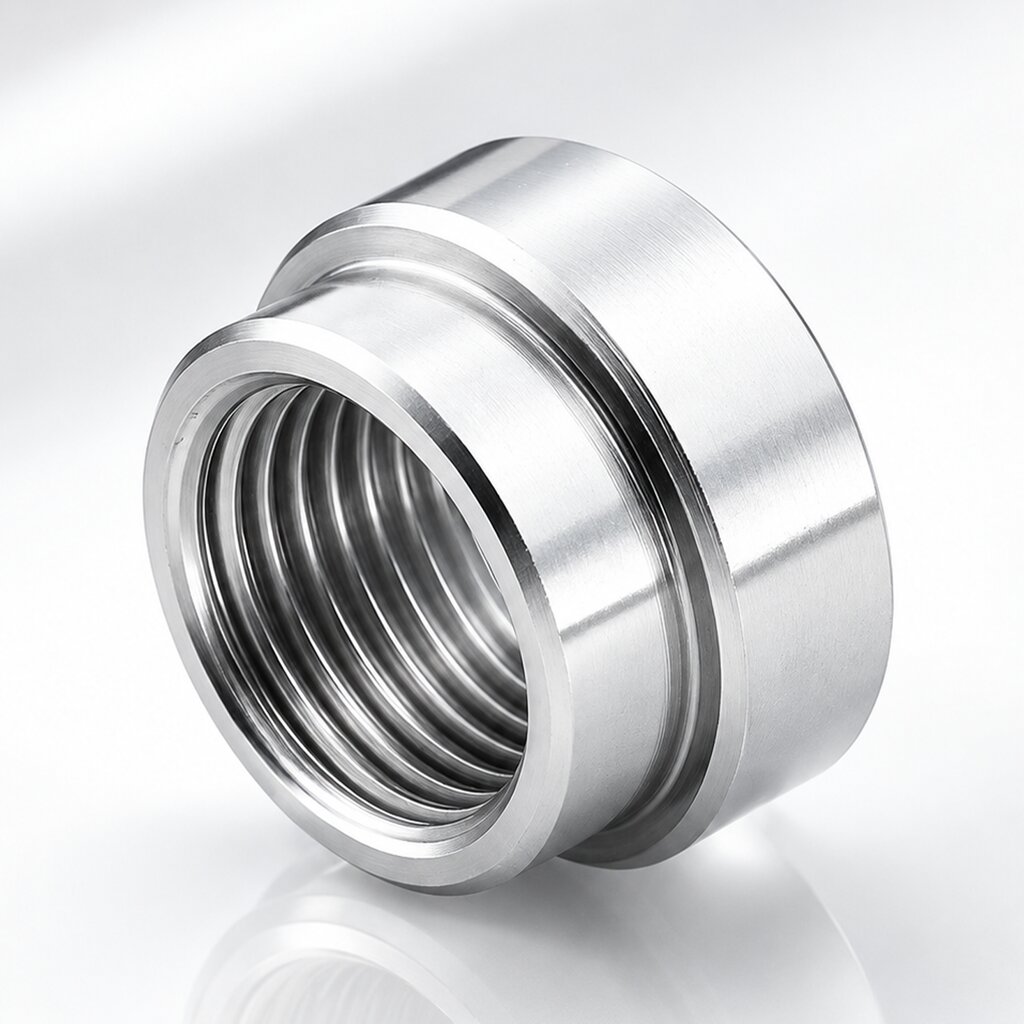

Arlows Weld-on threaded adapter M12x1.5 - Aluminium -
Add a threaded connection to a suitable component.
This weld-on adapter lets you provide an additional connection on a suitable weldable component. The thread, material and available dimensions are listed separately for planning. This version: Thread: M12x1.5. Diameter: Confirm dimension before ordering.
Benefits at a glance
POSITION THE CONNECTION
The connection location can be specified as part of the component design.
MATCH THE MATERIAL
Match the adapter to the base material and the intended welding process.
Technical specifications
| Thread | M12x1.5 |
|---|---|
| Material | Aluminium 6061-T6 |
| Diameter | Confirm dimension before ordering |
| Height | 12 mm |
| SKU | AR5805 |
The outside diameter unit is unclear in the product data. Please have this dimension confirmed before ordering.
Applications
For custom tanks, tubes or housings made from a compatible weldable material. Suitability depends on the design, welding process and intended operating loads.
Included
The described item with the O-ring specified as included in the product information.
Installation & notes
Have welding carried out by a suitably qualified specialist. Check material compatibility, wall thickness and connection position. Remove seals before welding and protect threads and sealing faces from distortion and weld spatter. Clean and leak-test the finished component. Do not weld tanks containing flammable residues; specialist preparation is required.
Common question
Can it be welded to any metal?
No. The material combination, filler and welding process must be compatible. Check the weld and finished component before commissioning.
