Arlows Aufschweissadapter 1/4" NPT - Aluminium -

5,49 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	5,27 €*
5	5,11 €*
10	4,94 €*

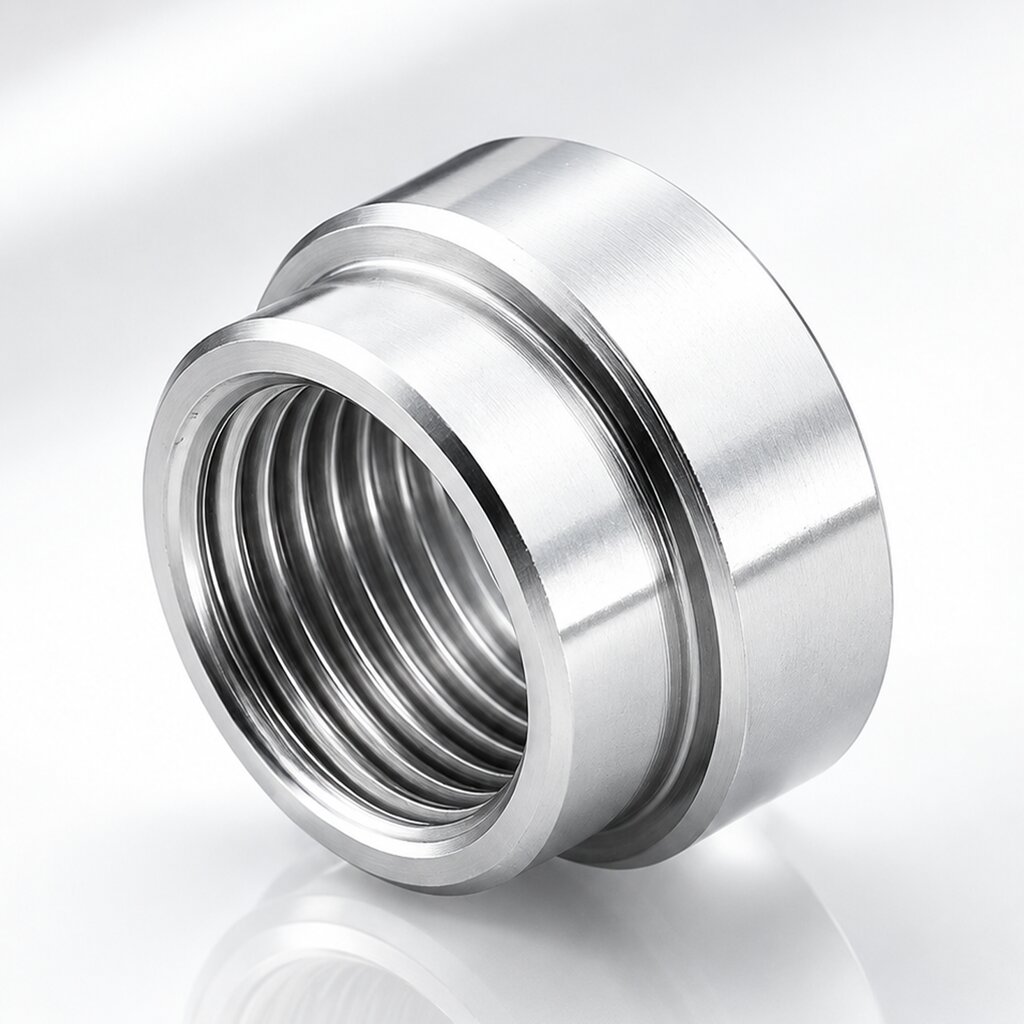

Arlows Weld-on adapter 1/4" NPT - Aluminium -
Add a threaded connection to a suitable component.

Thread: 1/4" NPT
Material: Aluminium 6061-T6
Overall height: 12.5 mm
Shoulder height: 7 mm

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

ARLOWS · AR4096

Arlows Weld-on adapter 1/4" NPT - Aluminium -

Add a threaded connection to a suitable component.
This weld-on adapter lets you provide an additional connection on a suitable weldable component. The thread, material and available dimensions are listed separately for planning. This version: Thread: 1/4" NPT. Overall height: 12.5 mm.

Benefits at a glance

POSITION THE CONNECTION

The connection location can be specified as part of the component design.

MATCH THE MATERIAL

Match the adapter to the base material and the intended welding process.

Technical specifications

Thread	1/4" NPT
Material	Aluminium 6061-T6
Overall height	12.5 mm
Shoulder height	7 mm
Diameter	25 mm
Shoulder diameter	19 mm
SKU	AR4096

Applications

For custom tanks, tubes or housings made from a compatible weldable material. Suitability depends on the design, welding process and intended operating loads.

Installation & notes

Have welding carried out by a suitably qualified specialist. Check material compatibility, wall thickness and connection position. Remove seals before welding and protect threads and sealing faces from distortion and weld spatter. Clean and leak-test the finished component. Do not weld tanks containing flammable residues; specialist preparation is required.

Common question

Can it be welded to any metal?

No. The material combination, filler and welding process must be compatible. Check the weld and finished component before commissioning.
