Arlows Alu Dash Fitting - 135° - Blue Dash 4 (7/16 - 20 UNF)

13,90 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	13,34 €*
3	13,48 €*
5	12,93 €*
6	13,07 €*
9	12,65 €*
10	12,51 €*

Colour
Size

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

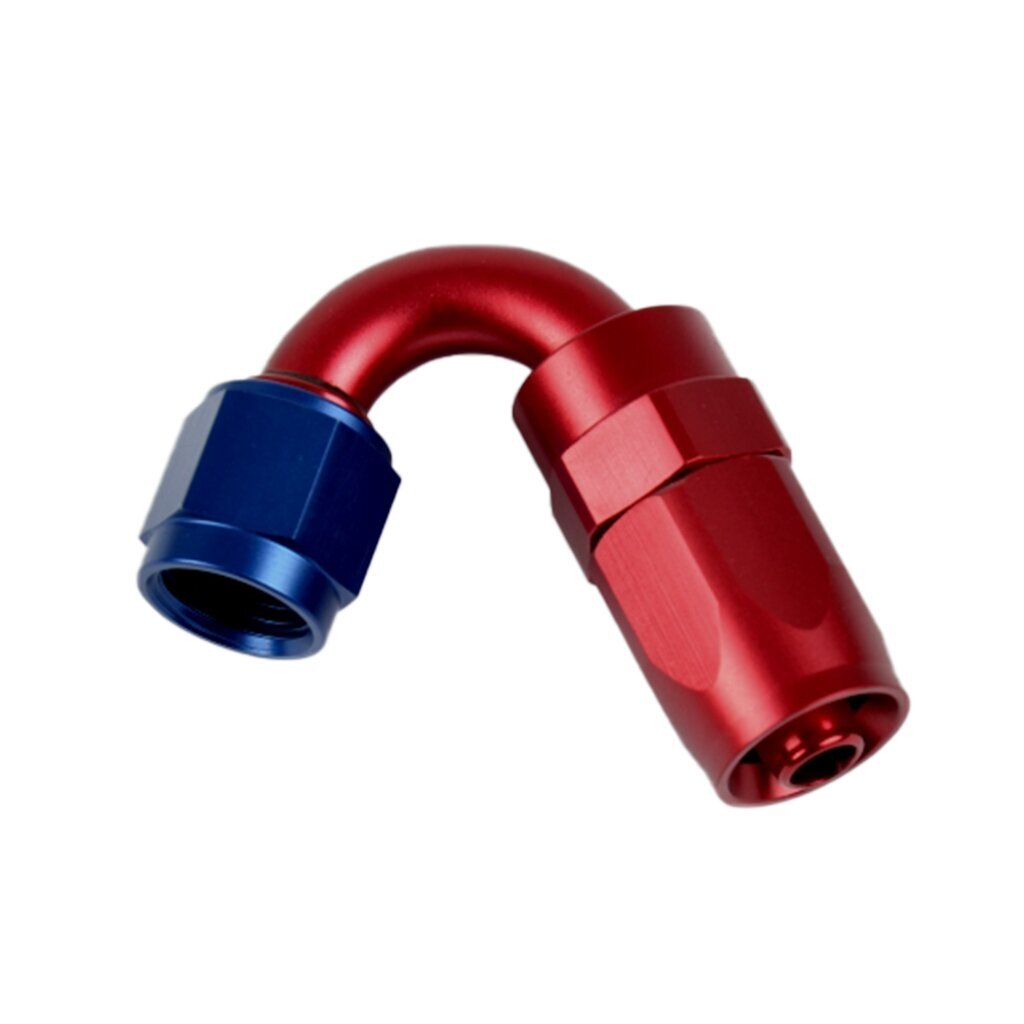

ALU AN 135° AR8375

Arlows Aluminium AN Dash Fitting 135°

More than 90°. Less than 180°.
Anodized aluminium fitting with a 135° body for classic steel braided hose. Black or blue. When 90° does not fold enough and 180° sends the line back on itself. For fuel, oil, cooling and hydraulics. For PTFE hose use PTFE fittings.

135° ANGLE

A strong turn. The line comes back at an angle without a full reverse.

ANODIZED ALU

Light, corrosion resistant, race look. Pick colour above: black or blue.

AN DASH

Fits common steel flex. Pick size above, threads in the table.

TIGHT BAY

At the block, turbo and frame, where 90° is not enough and the hose must not kink.

Use cases

Fuel and oil: rail, oil cooler, filter, when the line almost has to run back
Cooling and hydraulics: stubs with a sharp exit
Car, van, motorsport: clean routing without hose pinch at the fitting

Technical data

Dash	Thread	ID	OD
Dash 4	7/16-20 UNF	5.56 mm	11.13 mm
Dash 6	9/16-18 UNF	8.73 mm	13.89 mm
Dash 8	3/4-16 UNF	11.12 mm	16.28 mm
Dash 10	7/8-14 UNF	14.27 mm	20.24 mm
Dash 12	1 1/16-12 UNF	17.47 mm	23.82 mm
Dash 16	1 5/16-12 UNF	22.20 mm	30.50 mm
Dash 20	1 5/8-12 UNF	28.50 mm	35.81 mm

Part number: AR8375
Material: aluminium, anodized
Colours: black, blue
Angle: 135°
Hose: classic steel flex AR8394, not PTFE core

Fitment

Cut the hose square, assemble the fitting per the instructions. Dash size must match hose and counterpart. For PTFE Teflon hose (AR9106 / AR9107) use PTFE fittings. 90°, 180° and block angles are separate items.
