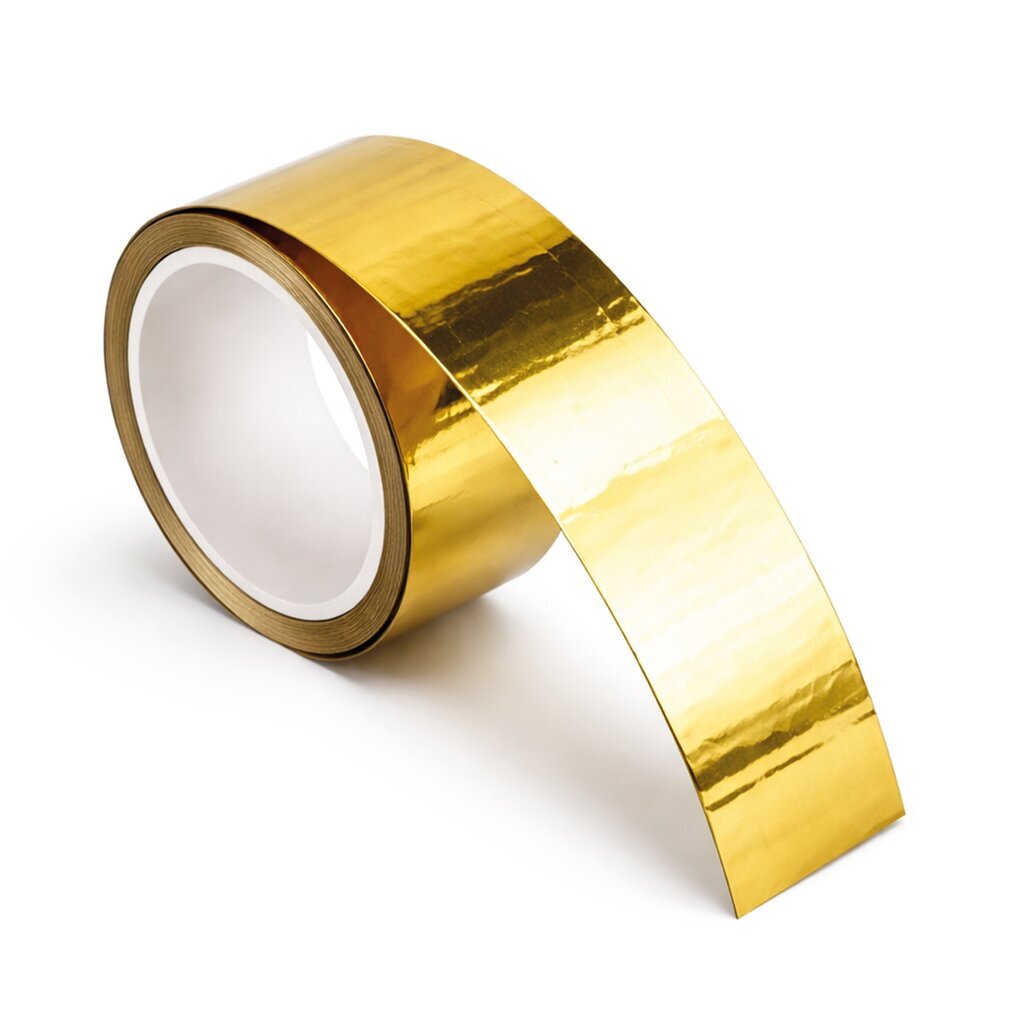

Arlows 9,2m heat pRotection tape (reflective gold / adhesive / 50 mm width)

Description

GOLD 9.2 M AR4257

Arlows Heat Protection Tape Gold 9.2 m x 50 mm

Double the length. Same gold face. One roll instead of two orders.
Self adhesive fibreglass tape with a gold aluminium face. 9.2 m for covers, line runs and several spots in the bay. More effective than silver tape.

9.2 M ROLL

Shop length. Several lines, one large cover and spare from a single roll.

GOLD NOT SILVER

The gold face reflects radiation more efficiently than classic silver alu tape.

450 °C / 1500 °C

Continuous reflection up to 450 °C, short term up to 1500 °C. Front to back delta up to 75 °C.

SELF ADHESIVE

Cut, peel, press. No extra adhesive.

Use cases

  • Engine bay: plastic covers, intake parts, connector blocks next to turbo and manifold
  • Fuel and lines: petrol, diesel and vacuum lines in the radiation field
  • Cabin / conduit: spots where heat comes through the panel
  • Van, marine, generator, industry: plastics and cables beside hot plant

Technical data

  • Part number: AR4257
  • Size: 9.2 m length x 50 mm width
  • Material: fibreglass cloth with gold aluminium coating
  • Finish: self adhesive
  • Continuous reflection: up to 450 °C
  • Short term reflection: up to 1500 °C
  • Temperature difference front/back: up to 75 °C

Fitment

Degrease and dry the surface. Cut, peel, press, overlap edges. Do not use this as a substitute for titanium or ceramic wrap on the manifold itself.

Only need 4.5 m?

AR4256 or titanium / ceramic wrap for headers

SHOP HEAT PROTECTION >
SKU: AR4257
Colour‍: Gold
×
