Description
WAGNER TUNING ? COMPETITION GEN.2 · TÜV

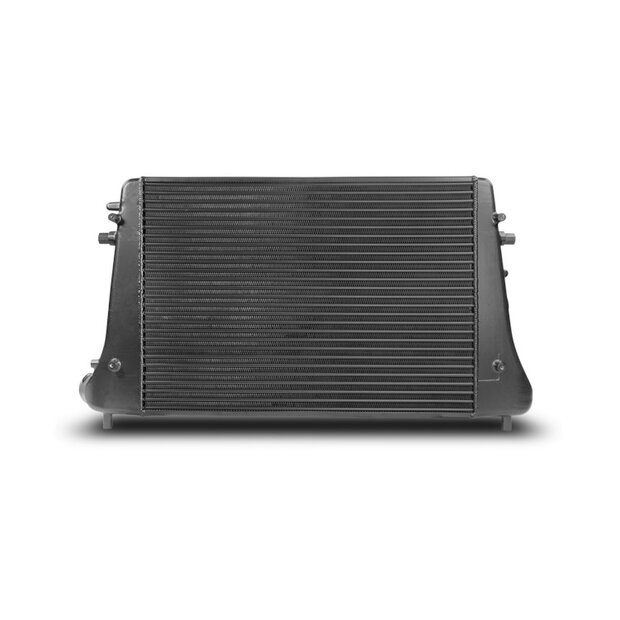

Audi S3 8P / VAG 2.0 TFSI Competition Gen.2 Intercooler Kit ? Wagner Tuning
More volume. More frontal area. TÜV parts certificate. The Wagner Tuning Competition Gen.2 intercooler for the Audi S3 8P and VAG 2.0 TFSI/TSI platform is a 1:1 OEM replacement. Core 610 × 440 × 65 mm / 17.45 L: +50% charge-air volume and +10% frontal area versus the stock Audi S3 intercooler ? at only 9.2 kg.
Why Gen.2 is the right choice
+50% MORE VOLUME
17.45-litre competition high-performance core ? more cool, dense charge air for stock and tuned engines.
+10% FRONTAL AREA
Larger face plus CAD cast-aluminium air guides ? less backpressure and better internal distribution.
Ø67 MM CNC
CNC hose connections Ø67 mm including matching silicone hoses and clamps for clean airflow.
TÜV + 9.2 KG
Parts certificate for many vehicles included. Light core, anti-corrosion coating, 1:1 swap.
Technical highlights
- Core dimensions: 610 × 440 × 65 mm
- Charge-air volume: 17.45 litres (+50% vs. Audi S3 OEM)
- Frontal area: +10% vs. Audi S3 OEM
- Weight: 9.2 kg
- Hose connections: Ø67 mm, CNC-machined
- Competition core + cast-aluminium air guides
- Heat-conductive anti-corrosion coating
- 1:1 replacement of the OEM intercooler
- TÜV parts certificate included for many vehicles
Fitment
Audi
A3 8P 1.8 TFSI 118 kW/160 hp (2007?2012) ? except Cabriolet with OEM intake
A3 8P 2.0 TFSI 147 kW/200 hp (2004?2012) ? except Cabriolet with OEM intake
S3 8P 195 kW/265 hp (2006?2012)
TT 8J 1.8 TSI 118 kW/160 hp (2008?2014)
TT 8J 2.0 TFSI 147?155 kW/200?211 hp (2006?2014) ? not engine codes CETA / CESA
TTS 8J 200 kW/272 hp (2008?2014) ? not engine codes CETA / CESA
Volkswagen
Golf 5 GTI incl. ED30 147?169 kW/200?230 hp (2004?2008)
Golf 6 GTI incl. ED35 / Cabriolet 155?173 kW/211?235 hp (2009?2013) ? USA: not engine code CBFA from 2011
Golf 6 R incl. Cabriolet 199 kW/270 hp (2009?2013)
Scirocco 3 2.0 TSI 147?162 kW/200?220 hp (2008?2015) EA888 Gen.1?Gen.3
Scirocco 3 R 195?206 kW/265?280 hp (2009?2015) EA888 Gen.1?Gen.3
EOS 2.0 TFSI 147 kW/200 hp (2006?2009) / 155 kW/211 hp (2009?2014)
Jetta 5 2.0 TFSI 147 kW/200 hp (2005?2010)
Jetta 6 2.0 TSI 147?155 kW/200?211 hp (2010?2014)
Passat B6 1.8 TSI 118 kW/160 hp (2007?2010) / 2.0 TSI 147 kW/200 hp (2005?2010)
Passat B7 1.8 TSI 118 kW/160 hp (2010?2012) / 2.0 TSI 155 kW/211 hp (2010?2014)
Passat CC 1.8 TSI 118 kW/160 hp (2008?2012) / 2.0 TFSI 147 kW/200 hp (2008?2010) / 2.0 TSI 155 kW/211 hp (2010?2014)
Beetle 2.0 TSI 147?162 kW/200?220 hp (2011?2016)
?koda
Octavia 1Z 1.8 TSI 118 kW/160 hp (2008?2013)
Octavia 1Z MK2 RS 147 kW/200 hp (2005?2009) / 155 kW/211 hp (2009?2013)
Superb 3T 2.0 TSI 147 kW/200 hp (2010?2013)
Seat (minor vehicle modifications required)
Leon 1P 1.8 TFSI 118 kW/160 hp (2009?2012)
Leon 1P 2.0 TFSI 136 kW/185 hp (2005?2006)
Leon 1P FR 147 kW/200 hp (2006?2009) / 155 kW/211 hp (2009?2012)
Leon 1P Cupra 177 kW/241 hp (2007?2011)
Leon 1P Cupra R 195 kW/265 hp (2009?2012)
Leon 1P Copa Edition 210 kW/286 hp (2008)
Leon 1P Cupra R310 LE / WCE 228 kW/310 hp (2009?2012)
Part number: 200001034
Package contents
1× intercooler, 2× silicone hoses, 4× hose clamps, 1× aluminium adapter, installation instructions, 1× TÜV parts certificate
