Audi TT RS 8J 2.5 TFSI Competition Intercooler Kit EVO3 ? Wagner Tuning
More frontal area. More volume. Less backpressure. The Wagner Tuning Competition Intercooler Kit EVO3 for the Audi TT RS 8J 2.5 TFSI is the top upgrade stage for high power targets and track use. With +120% larger frontal area and +142% more charge-air volume versus the stock cooler, EVO3 delivers cooler charge air with minimal pressure drop.
The lightweight competition core (complete unit with cross member only 11.2 kg) leaves enough airflow for adjacent components such as the radiator. CAD-optimised cast aluminium end tanks with integrated air guide plates ensure even core filling ? installs 1:1 on the original mounting points.
Why EVO3 is the right choice for your TT RS 8J
+142% MORE VOLUME
Charge-air volume 16.5 litres vs. 6.8 litres OEM. Significantly more cooling capacity for stable temperatures under high load and long full-throttle runs.
+120% FRONTAL AREA
Cooling area 1890 cm² vs. 856 cm² OEM ? maximum heat rejection while still allowing airflow to the radiator.

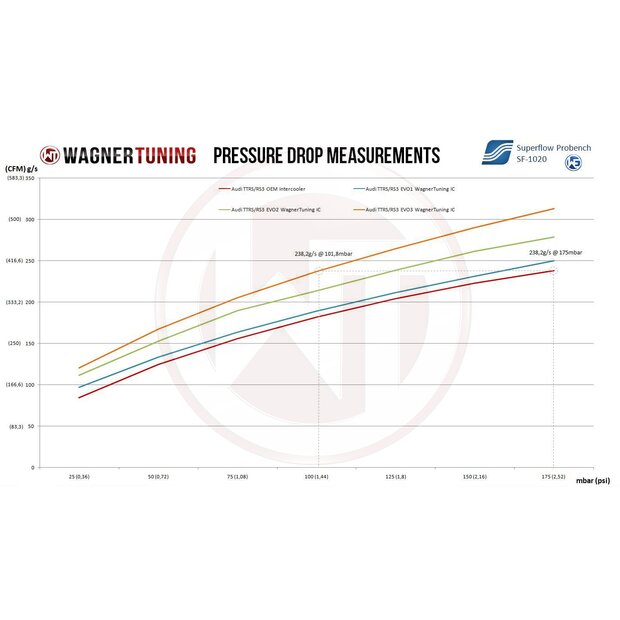

MINIMAL BACKPRESSURE
Flow-optimised end tanks with inlet air guide plates for even core filling and low pressure drop ? built for track use.

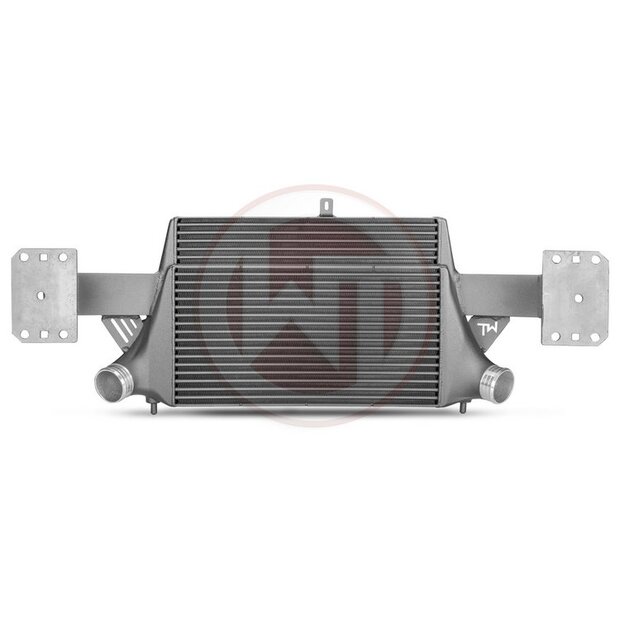

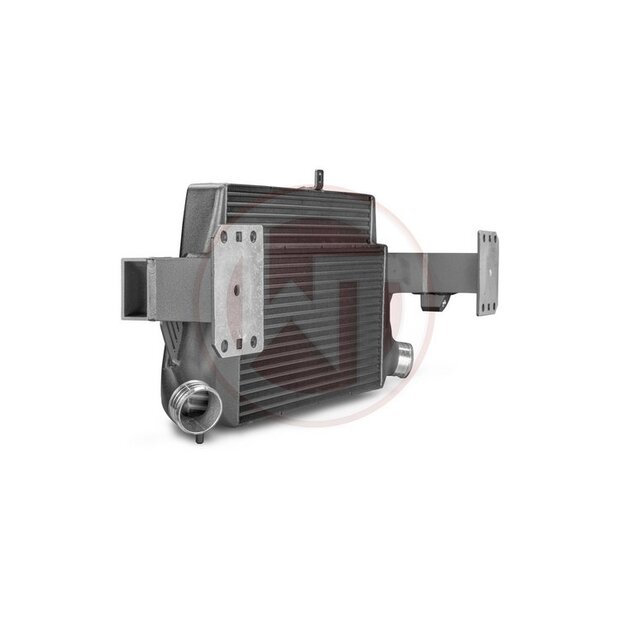

1:1 WITH CROSS MEMBER
Intercooler and original cross member form one rigid unit. Connection diameter 68 mm on both sides, mounts at factory points.
Technical highlights
- Core dimensions: 515 × 367 [274] × 95 mm
- +120% frontal area vs. OEM
- +142% charge-air volume vs. OEM
- Competition high-performance core ? lightweight, track-ready
- Cast aluminium end tanks, CAD flow-optimised
- Integrated air guide plates for even filling
- Total weight incl. cross member: only 11.2 kg
- Connection diameter 68 mm both sides
- Mounts on original fixing points (1:1)
Wagner Tuning stage comparison
- OEM: cooling area 856 cm² / volume 6.8 L
- WT EVO1 Performance: 856 cm² / 9.4 L
- WT EVO2 Competition: 1391 cm² / 13.2 L
- WT EVO3 Competition: 1890 cm² / 16.5 L ? this kit
Fitment
Audi TT RS 8J 2.5 TFSI
Package contents
1× intercooler including cross member, mounting hardware, 1× set of license plate holders, installation instructions
Availability note: In some cases the item is not in stock and is ordered directly from the manufacturer ? delivery may then take 1?2 additional working days.
Not approved for use on public roads under StVZO (German road traffic regulations).
