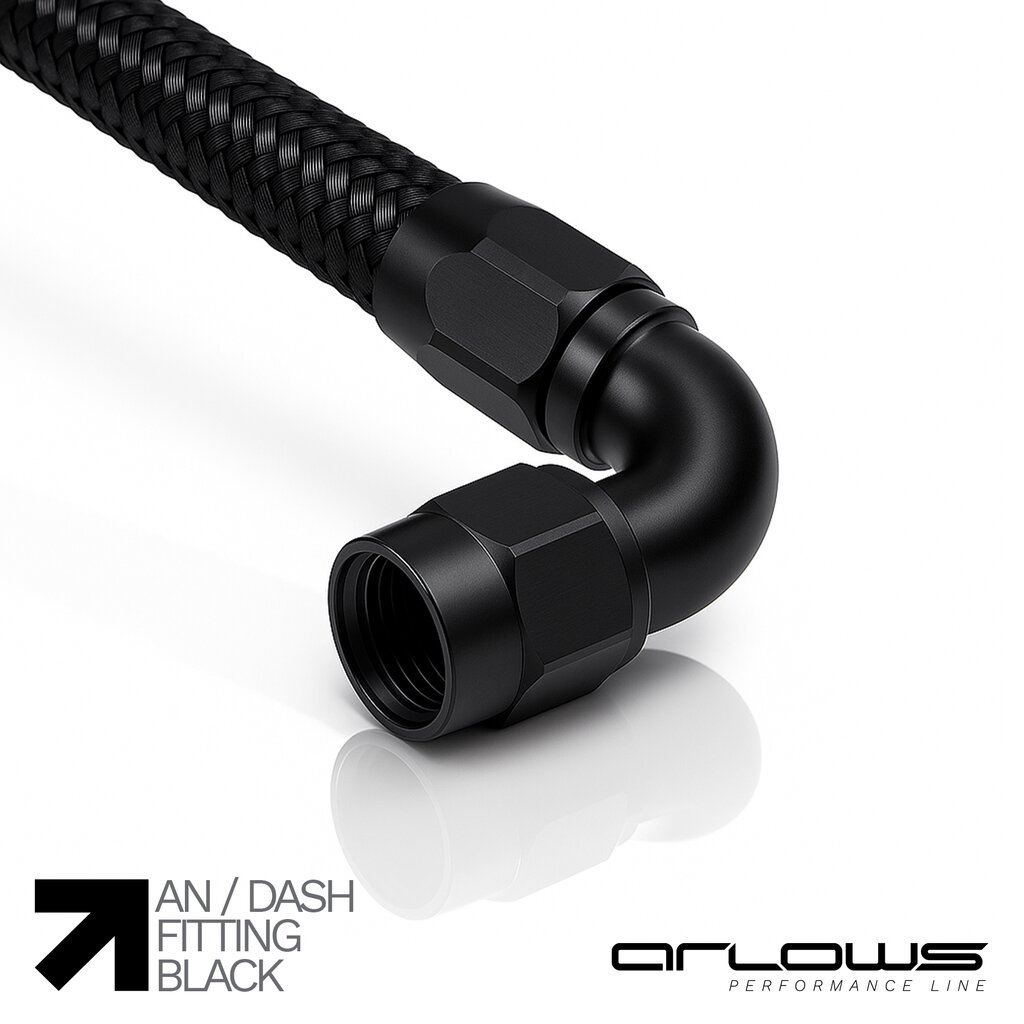

Arlows PTFE Aluminium AN Fitting Black
For PTFE hose. Not for classic steel flex.
Anodized aluminium fitting with an olive, built for Teflon lines AR9106 and AR9107. Same hardware as AR8886, black anodizing instead of blue. E85, petrol, diesel, methanol, oil. 360° swivel so the hose does not twist when you tighten. Pick Dash and angle above. Stainless PTFE fittings if corrosion comes first.
PTFE OLIVE
Crimp from the inside and between the layers. Seals at 2900 PSI working pressure, not just AN looks.
360° SWIVEL
Tighten the nut, the hose stays put. No twisted rail, no twisted cooler stub.
-70 °C TO +250 °C
Cold start to hot oil and fuel runs. Higher than classic steel flex.
BLACK ANODIZED
Light aluminium, quiet race look. Dash 3 to Dash 12, pick the angle above.
Use cases
- Fuel: E85, petrol, diesel, methanol, feed and return, rail
- Oil and hydraulics: oil cooler, catch can, pressure oil
- Air: boost and vacuum on PTFE line
- Car, van, motorsport: black AN run in the bay, quieter than blue
Technical data
| Dash | Thread | ID | OD | Working | Burst |
|---|---|---|---|---|---|
| Dash 3 | 3/8-24 UNF | 3.6 mm | 6.8 mm | 2900 PSI | 7000 PSI |
| Dash 4 | 7/16-20 UNF | 5.4 mm | 8.6 mm | 2900 PSI | 7000 PSI |
| Dash 6 | 9/16-18 UNF | 8.1 mm | 11.6 mm | 2900 PSI | 7000 PSI |
| Dash 8 | 3/4-16 UNF | 10.0 mm | 13.8 mm | 2900 PSI | 7000 PSI |
| Dash 10 | 7/8-14 UNF | 13.0 mm | 16.3 mm | 2900 PSI | 7000 PSI |
| Dash 12 | 1 1/16-12 UNF | 16.5 mm | 20.1 mm | 2900 PSI | 6000 PSI |
- Part number: AR8887
- Material: aluminium, black anodized
- Build: PTFE olive, 360° swivel
- Temperature: -70 °C to +250 °C

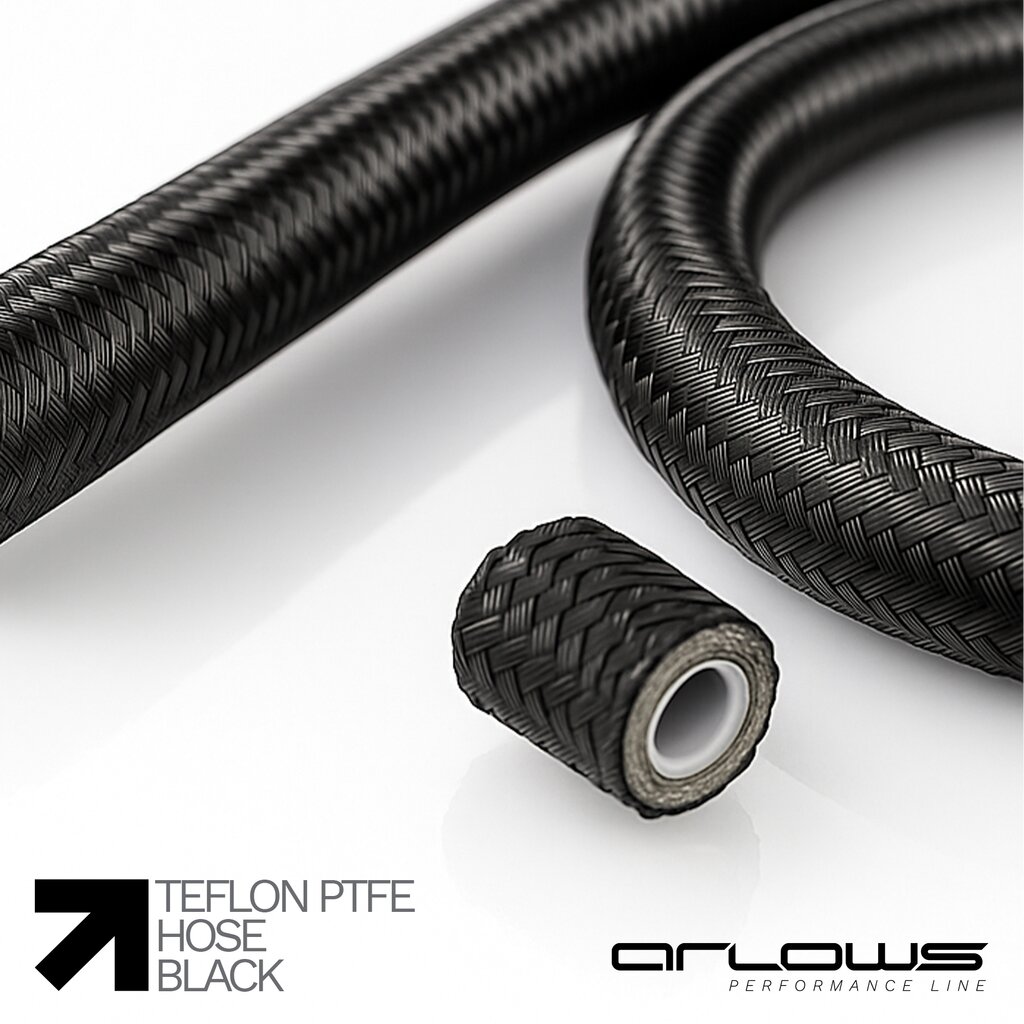

- Hose: PTFE Teflon AR9106 / AR9107 only
- Not for: classic steel flex AR8394 (use the AR8369 series)
- Sister part: AR8886 blue anodized
Fitment
Cut the hose square, assemble olive and fitting per the PTFE instructions. Dash size must match hose and counterpart. Pick the angle above. Do not use classic AN fittings without a PTFE olive here, they will not seal the Teflon core reliably. Cover cut braid ends after the cut.
| Item number: | AR8887 |
