Description
ARLOWS – OIL COOLING

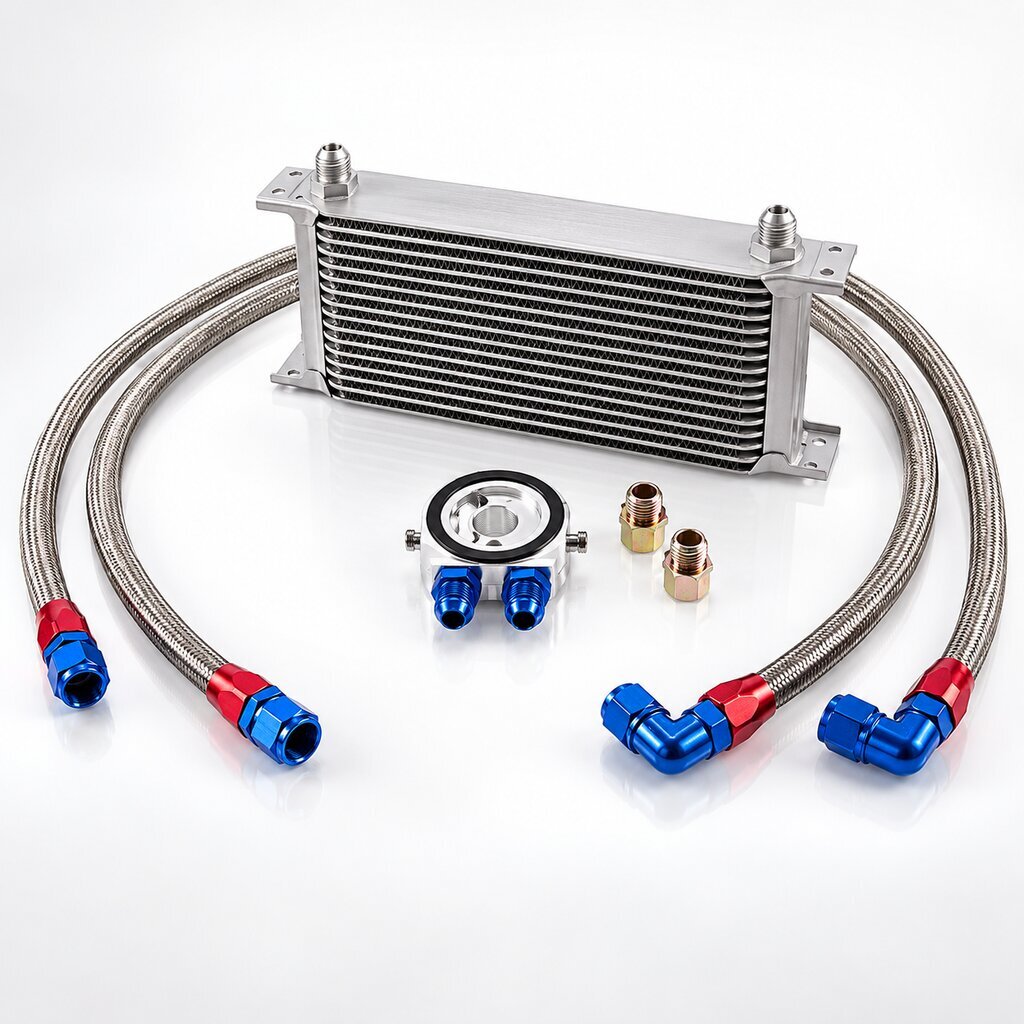

Arlows Oil Cooler Retrofit Kit – 19-row without thermostat
Complete kit. No thermostat. With sensor ports.
Retrofit kit with a large 19-row oil cooler, two stainless-braided lines and an adapter flange without thermostat. The plate sits between the block and the oil filter and has two M10×1 ports for oil temperature and oil pressure.
Why this kit?
19 ROWS
Large cooler (330 × 147 × 50 mm) – mount it where there is space, ideally rubber-isolated.
NO THERMOSTAT
Continuous flow through the cooler – for setups that should cool the oil at all times.
M10×1 SENSOR PORTS
Two outlets on the adapter for optional temperature and pressure senders.
DASH 8 BRAIDED
Two lines approx. 110 and 130 cm, can be shortened. Up to 30 bar and 160 °C.
Technical data
Oil cooler
- Overall length: 330 mm
- Height without fittings: 147 mm (19 rows)
- Depth: 50 mm
- Connection: Dash 8, 3/4"-16 UNF
Lines
- Stainless-steel braided
- Length: approx. 110 cm and 130 cm (can be shortened)
- Connection: Dash 8, 3/4"-16 UNF
- Outside diameter: approx. 20 mm
- Inside diameter: approx. 14 mm
- Working pressure: up to 30 bar
- Working temperature: up to 160 °C
Adapter plate
- Port 1: 3/4"-16 UNF
- Port 2: M20 × 1.5
- Centre bore: 24 mm
- 2× M10 × 1 outlets (oil temperature / oil pressure)
- No thermostat
Installation note
Cooler can be placed anywhere; rubber-isolated mounting is recommended. Adapter plate between block and oil filter. Bolt/adapter included. Shorten the lines if needed.
Package contents
1× 19-row oil cooler, 2× stainless-braided lines, 1× adapter flange without thermostat (incl. 2× M10×1), mounting bolt/adapter
| Item number: | TT00122 |
| Thread: | Dash 8 |
