Arlows Exhaust Elbow Audi / VW 1.8L + 2.0L 16V Turbo ( cast iron, T25 flange )

150,00 €
including 19% VAT. , plus shipping (Paketversand)
Arlows Exhaust Elbow Audi / VW 1.8L + 2.0L 16V Turbo ( cast iron, T25 flange )
Available now!

Shipping time: 1 - 2 workdays


Description

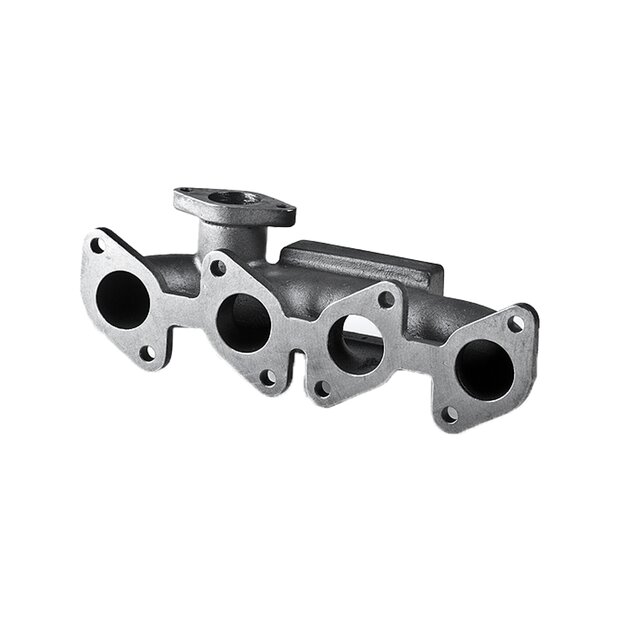

VW 16V Exhaust elbow + gasket



This exhaust elbow is made of cast iron and is suited for all VW / Audi 4 cylinder 827 8V engines.

Suitable for:

- VW Golf 1 + Cabrio  1,6-1,8L 16V
- VW Golf 2 1,6-1,8L 16V
- VW Golf 3 + Cabrio 1,6- 2,0L 16V

Engine classification code:

- KR, PL, ABF


These exhaust elbows are needed, if you want to equip your engine with an new turbocharger.

This casting elbow union is equipped with an 4 to 1 pipe guide,

To this elbow union it's possible to mount an T25 turbocharger.

The elbow union is poured out of a high temperature-firm material.
This casting is used also with exhaust housings of turbochargers.
After pouring the elbow union became heat treated around to solve internal spannings in the material and prevent cracking.
Subsequently, all sealing surfaces were planned and all threads were cut.

The elbow union can be installed directly, it is no remachining necessary.

You get a suitable T25 metallic seal also in addition.

With this elbow union up to 500hp can be realized.

Passend für folgende Turbolader:

T25, GT25, GT28, GT30, K16, K24, K26, K27, K28, K29


Attention, racing part. Not within the range of the StvO permissible.
Item number: AR0755
