Description

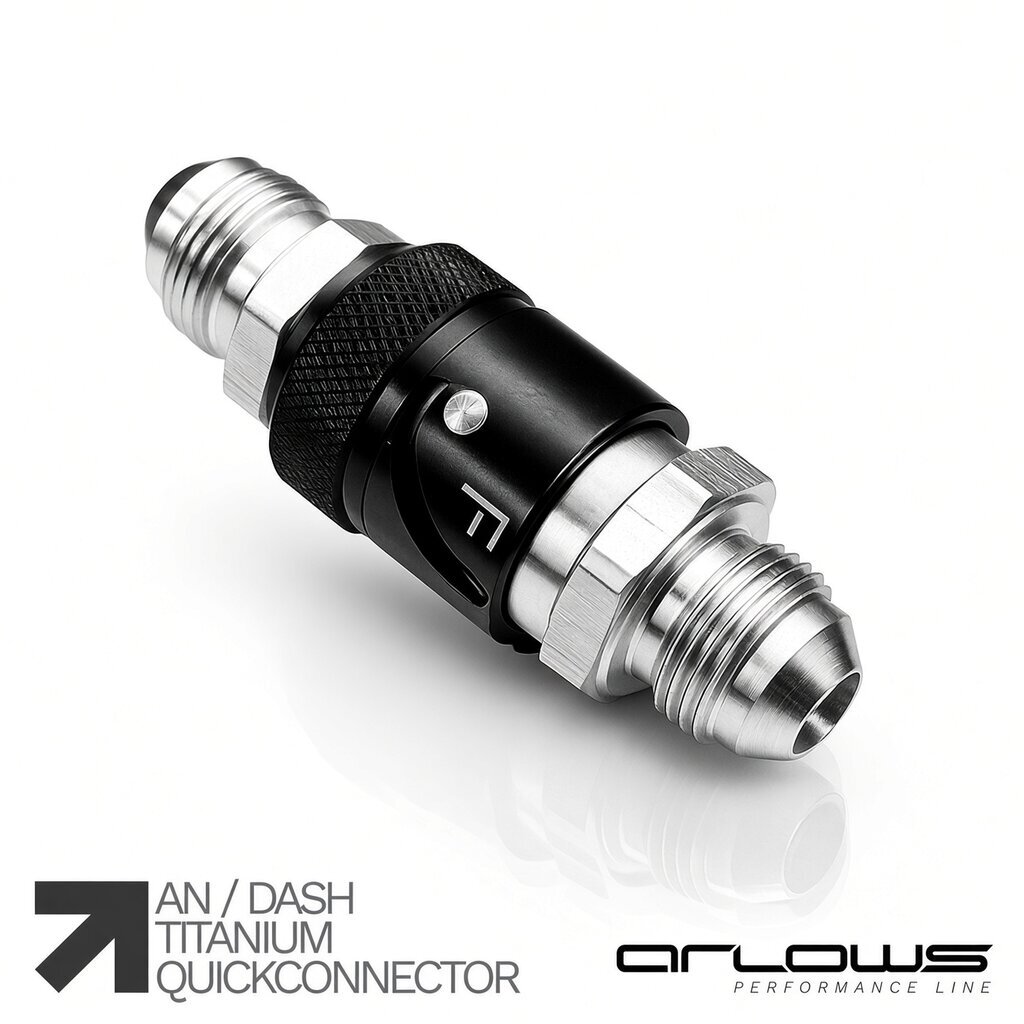

Arlows Dash Quick Coupler Black
Disconnect. No drip. No bleed.
The Arlows Dash quick coupler splits fuel, oil or water lines without having to bleed the system afterwards.
When disconnected the line stays closed ? no dripping in the bay or on the lift.
With swivel compensation, finished in black, sizes Dash 3 to Dash 20.
Why this coupler?
DRY-BREAK
Stays sealed when open. Ideal for engine-out work, dyno, quick-change and service.
NO BLEEDING
The circuit stays filled. Reconnect and continue ? no refill of the line.
SWIVEL
Takes twist out of the hose ? less stress on the fitting and the braid.
TITANIUM / STAINLESS
High-grade materials, black finish. Matches Arlows Dash fittings and steel-braid / PTFE hose.
Technical data
- Part number: AR12135
- Colour: Black
- Material: titanium / stainless steel
- Manufacturer: Arlows
- Function: quick coupler with swivel, drip-free when disconnected
Sizes / hose dimensions
| Dash | Thread | ID | OD |
|---|---|---|---|
| Dash 3 | 5/16"-24 UNF | 3.23 mm | 9.21 mm |
| Dash 4 | 7/16"-20 UNF | 5.56 mm | 11.13 mm |
| Dash 6 | 9/16"-18 UNF | 8.73 mm | 13.89 mm |
| Dash 8 | 3/4"-16 UNF | 11.12 mm | 16.28 mm |
| Dash 10 | 7/8"-14 UNF | 14.27 mm | 20.24 mm |
| Dash 12 | 1-1/16"-12 UNF | 17.47 mm | 23.82 mm |
| Dash 16 | 1-5/16"-12 UNF | 22.20 mm | 30.50 mm |
| Dash 20 | 1-5/8"-12 UNF | 28.50 mm | 35.81 mm |
Select the matching Dash size on the product.
Use
Fuel, oil and water lines in Dash/AN systems. Fits Arlows steel-braid and PTFE hose and standard AN fittings.
| Item number: | AR12135 |
