Arlows Aluminum Angle 90° Mid Radius (AlMgSi0,5 Aluminum Angle) 70mm

Arlows Aluminum Angle 90° Mid Radius (AlMgSi0,5 Aluminum Angle) 70mm

29,90 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
2	29,00 €*
3	28,40 €*
5	27,81 €*
10	26,91 €*

Arlows aluminium pipe bend 90° medium radius ( AlMgSi0,5 aluminium bend )

diameter

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

90° · MEDIUM RADIUS

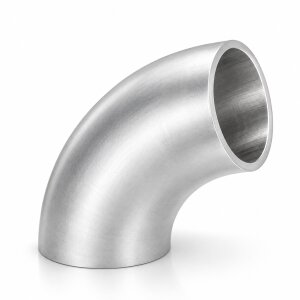

Arlows aluminium pipe bend 90° medium radius AlMgSi0.5

90° bend for clean direction changes. Consistent wall thickness, weldable, no thin spots in the curve.

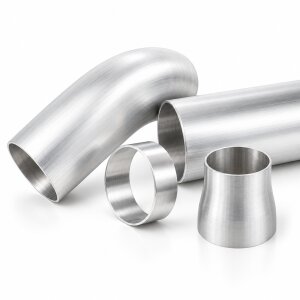

Mandrel bend in AlMgSi0.5 (EN AW-6060). The medium radius keeps the flow section open and saves space compared with a wide bend. Matches the Arlows straight tubes and other bends in the same alloy. Diameter is selected in the variant.

Why this bend?

90 DEGREE

Full angle for charge air and intake. Formed from one piece, or cut into smaller angles if the angle is too large.

MEDIUM RADIUS

Compromise between space and flow. Less turbulence than a tight bend, more compact than a wide one.

WELDABLE

AlMgSi0.5 welds cleanly with TIG or MIG. Laser etched Arlows logo. Same alloy as the straight tubes and ends.

LIGHT

Aluminium saves weight. Pressure resistant for charge air and intake in the Arlows bend series.

Use cases

Charge air piping and charge pipe routing
Intake tubes and cold air routing
Custom hard lines for water or oil coolers
Exhaust in motorsport (watch temperature range)
Not for fuel without material check

Technical data

Part number	AR8360
Material	Aluminium AlMgSi0.5 (EN AW-6060)
Angle	90°
Radius	medium radius (depends on diameter)
Wall thickness	see variant / series
Diameter	see variant selection (outer diameter)
Processing	weld, saw, deburr

Fitment

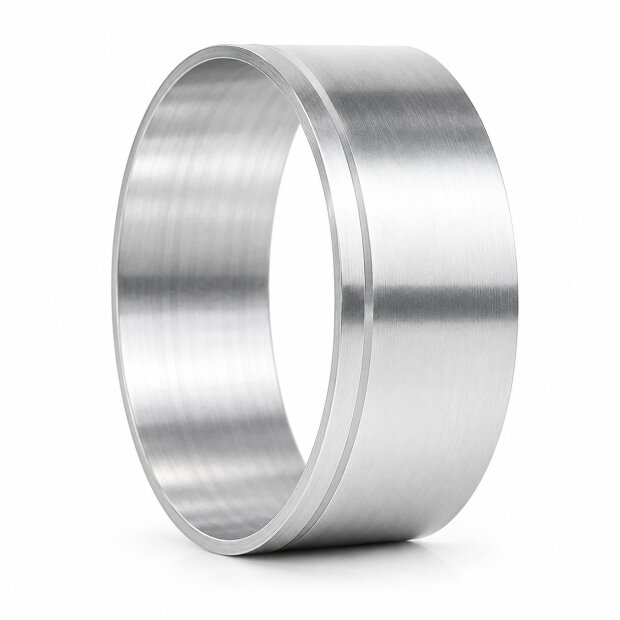

Match the diameter to the mating part. Deburr the ends. Weld to Arlows straight tubes, cones or beaded ends. Connect with silicone hose and clamp (double wire or bolt clamp). Check direction and flow before tightening.
