ARLOWS · AR4175

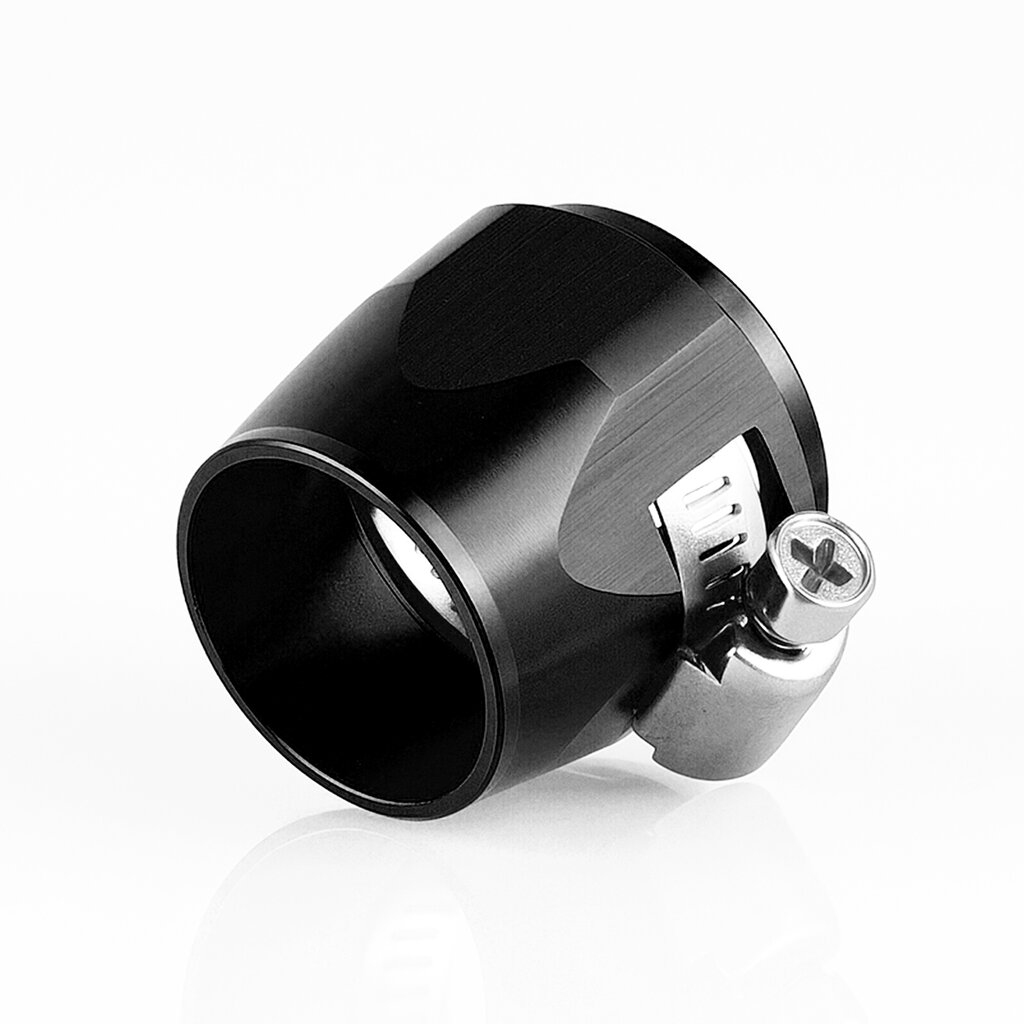

Arlows Aluminium hose finisher clamp 21-30 mm/Dash 16 ( colour Black )
Secure the hose and finish the connection neatly.
This hose clamp with an anodised aluminium cover secures suitable hoses to compatible hose barbs or tube connections. The cover encloses the hose end and helps limit fraying of stainless braid. This version: Clamping range: 21 to 30 mm. Hose size: Dash 16.
Benefits at a glance
DEFINED CLAMPING RANGE
Use the stated range to match the outside diameter of the hose after it is fitted.
ANODISED ALUMINIUM COVER
The cover encloses the hose end for a tidy connection area.
Technical specifications
| Material | Anodised aluminium |
|---|---|
| Colour | Black |
| Clamping range | 21 to 30 mm |
| Hose size | Dash 16 |
| SKU | AR4175 |
Applications
For suitable braided and conventional rubber hoses on approved push-on or tube connections. The assembly must be suitable for the operating pressure, temperature and fluid.
Included
1 piece in the described or selected version.
Installation & notes
Compare the outside diameter of the fitted hose with the clamping range. Fully seat the hose on a suitable barb and position the clamp in the intended retention area. Tighten to the component instructions without damaging the hose or connection. Check retention and leak-tightness afterwards.
Common question
Does it replace an AN or PTFE hose fitting?
No. Use the connection method specified for the hose construction. PTFE lines require a compatible fitting system.
