Description

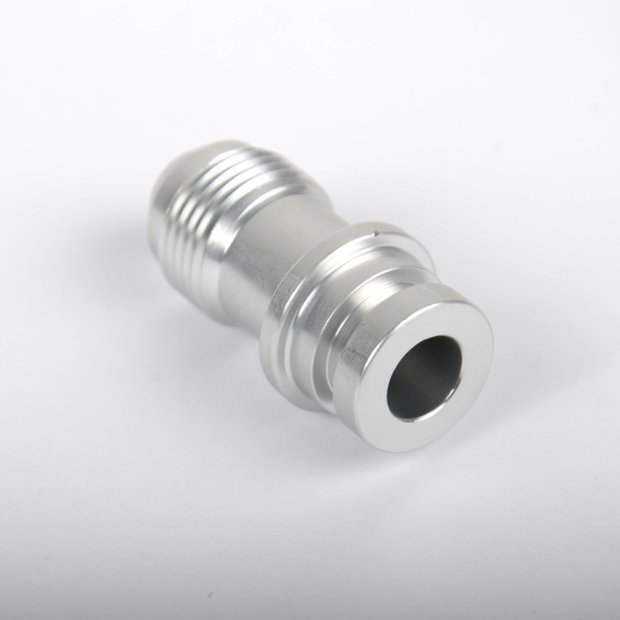

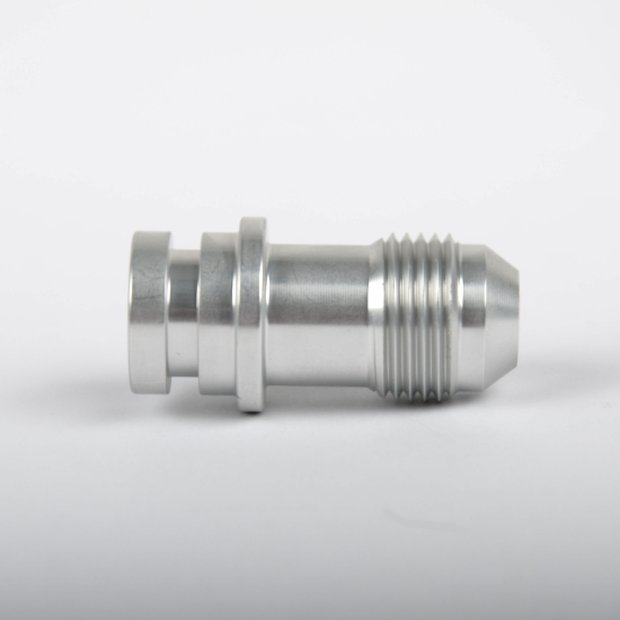

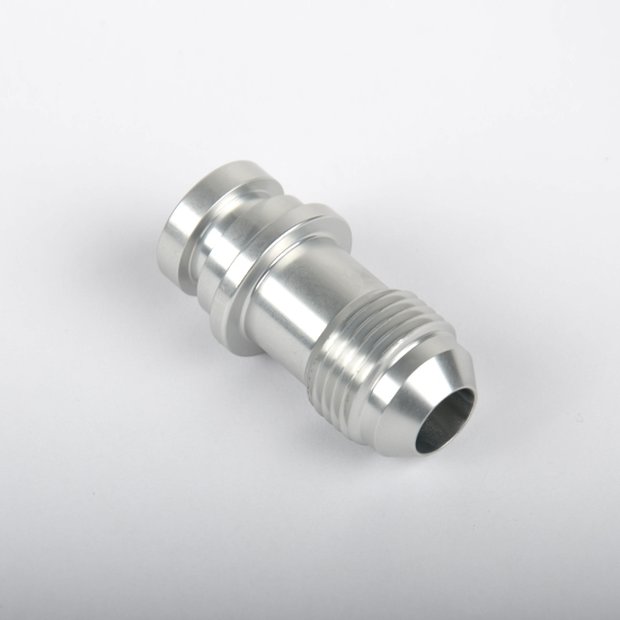

Adapter for oil cooler connection cables BMW E30 E36 (conversion to dash 8 with V8 engine)
This adapter is needed when you are building a model of the BMW E30 O. E36 series into a V8 engine (engine block M60/M62/S80).
In the case of a V8 conversion, the original oil filter housing has to be moved to another location for reasons of space.
- High-Solid alumnium
- Perfectly fitting
- 100% Tight
The adapter has a Dash 8 connector on one side.
2 of these adapters are required.
The matching pipelines and similar can be found in our shop.
Technical details:
Total Length: 43mm
Connection Diameter 1: 18,4mm
Connection Thread 2: Dash 8
Inner diameter: 9,8mm
| Item number: | AR6857 |
| Thread: | Dash 8 |
