Description

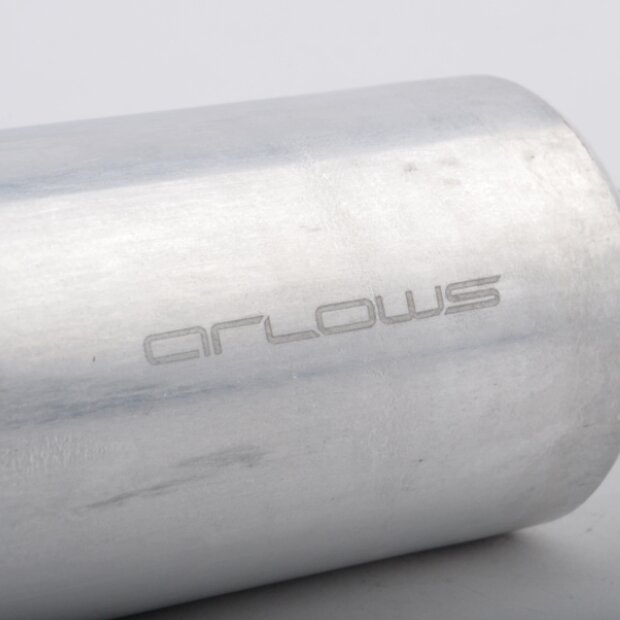

This is an electronically-operated fuel pump, which is developed for motor sports.
It can be used as "in-line" or "in-tank" pump.
Extremely high operating pressures (up to 9 bar) are no problem for this fuel pump, because the flow is still given.
Another advantage of this pump is the high capacity of up to 310 L / h.
Inlet side a sieve in the pump is integrated. It is recommended to mount a fine filter / fuel filter at the output side.
From experience, we can say that our fuel pumps are suitable for vehicles which have up tp 700HS, thus they are ideal for increased-power rated vehicles.
Scope of delivery:
-1 x fuel pump
-screwed valve into the pump output

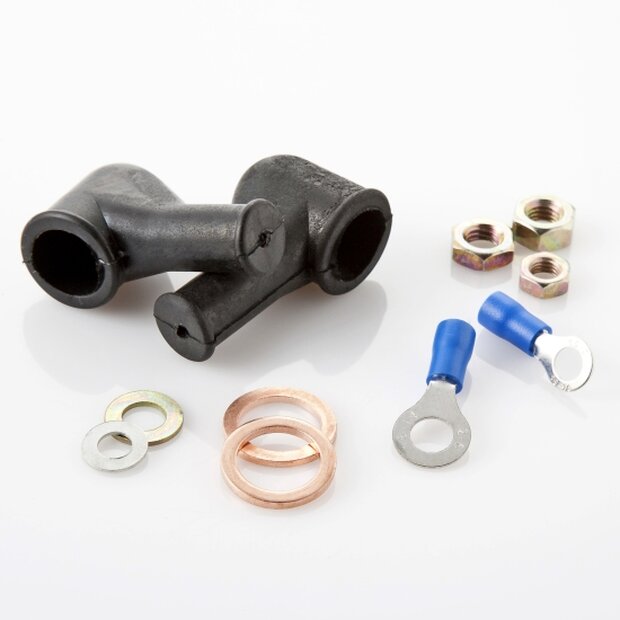

-Mounting material (see figure)
Technical data:

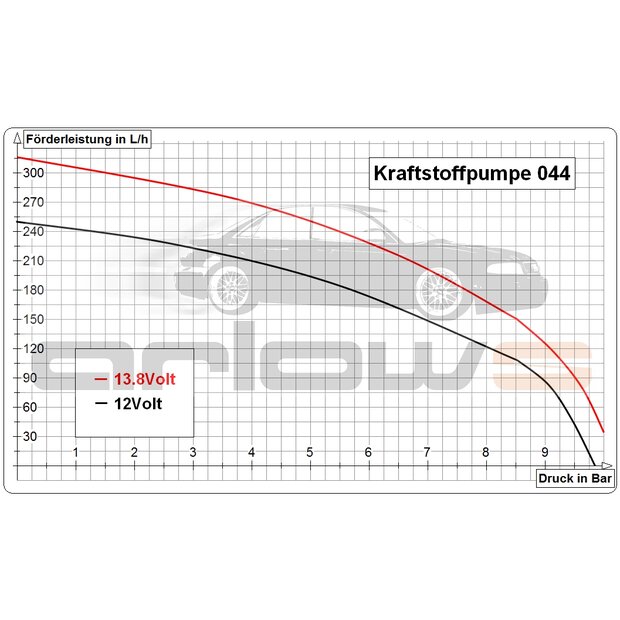

Capacity: up to 310 L / h (see pump chart)
Input: M18x1, 5
Output: M12x1, 5
Operating pressure: 8 bar (for a short time 9 bar)
internal pressure relief valve: 10,5...12 bar
Power supply: 6-16V
Operating voltage: 13,8V
Current consumption: 10-15A
Application temperature: 25... 90 °
Weight: 1022 grams
Please refer to the technical drawing for the dimensions and connections.
Appropriate fittings, adapters and connectors can be ordered individually.
| Item number: | AR0279 |
