Arlows V-Band Ersatzschelle 2" / 50,8mm ( Edelstahl )

11,90 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
2	11,54 €
3	11,31 €
5	10,95 €

Description

V-BAND 50,8 MM AR0595

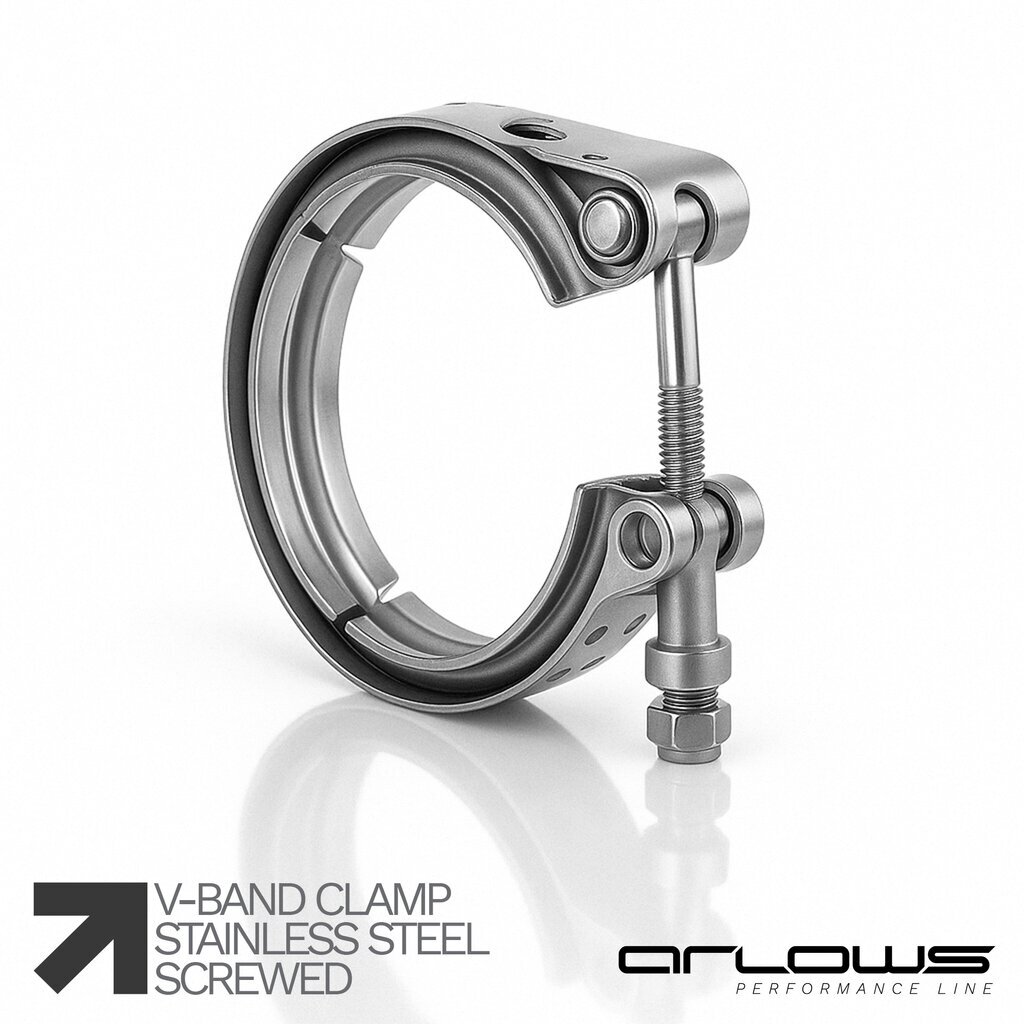

Arlows V-Band clamp 50,8 mm / 2 in

Replacement clamp for V-band flanges 50,8 mm / 2 in.
Replacement clamp for V-band flanges 50,8 mm / 2 in. Stainless, reusable, for exhaust and turbo.

OPENS

Clamp off, part off. Turbo, downpipe and test flange without cutting the flex.

STAINLESS

1.4301 / V2A. Heat, vibration, exhaust.

SMOOTH BORE

After welding the inside diameter is the tube's.

EXHAUST AND TURBO

Downpipe, header, turbo flange, wastegate.

Use cases

Exhaust: downpipe, header, mid pipe, rear silencer
Turbo: turbine outlet, wastegate, external bypass
Shop: remove a part without cutting the weld

Technical data

Part number	AR0595
Fits tube	50,8 mm / 2 in
Material	stainless 1.4301 / 304
Build	clamp
Clamp OD	approx. 90 mm
Thread	M8
Spanner	13 mm

Fitment

Cut the tube square, slide it into the chamfer, weld inside and outside. Keep the rings true before welding. Tighten the clamp only after it has cooled, thread M8. Do not mix aluminium and stainless in the same weld.

Other size?

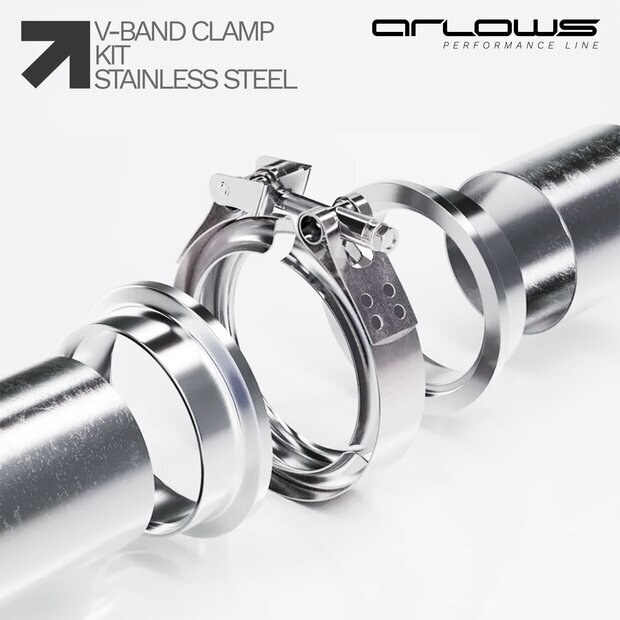

Clamp, rings or set

SHOP V-BAND >

Item number:	AR0595
weight‍:	0,1KG
Material‍:	Edelstahl
