ARLOWS · AR2667

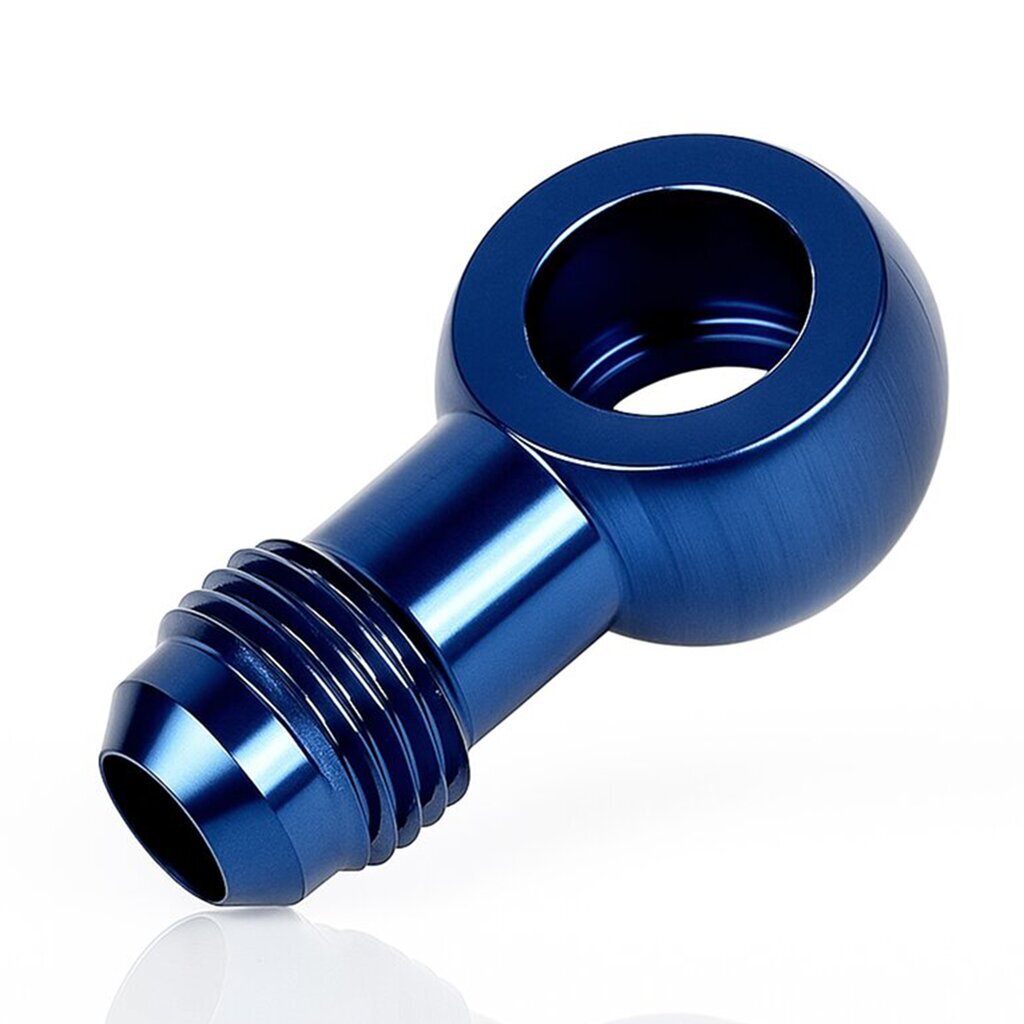

Arlows Ø 18 mm Aluminium banjo fitting to Dash 6
Connect an AN line through a banjo fitting.
This aluminium banjo fitting connects the specified AN thread to a compatible hollow-bolt assembly. The bore diameter helps you select the matching bolt diameter. This version: Bore: 18 mm. Connection thread: Dash 6 UNF thread.
Benefits at a glance
BANJO TO AN CONNECTION
The design connects an AN line to a suitable hollow-bolt port.
SPECIFIED BORE
The bore diameter helps you select the matching component.
Technical specifications
| Bore | 18 mm |
|---|---|
| Material | Aluminium |
| Colour | Blue anodised |
| Connection thread | Dash 6 UNF thread |
| SKU | AR2667 |
Applications
For compatible banjo ports in custom line assemblies. The bolt must match the bore, banjo thickness and receiving thread.
Installation & notes
Select a compatible hollow bolt and suitable sealing washers. Align the banjo without strain and assemble with the required seals. Check engagement length and fluid passages. Connect the AN mating fitting at its matching sealing face and leak-test the complete assembly.
Common question
Is the matching banjo bolt included?
The product information points to separately selected banjo bolts. Assemble the banjo fitting, bolt and seals as a compatible combination.
Complete your line assembly
Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.
