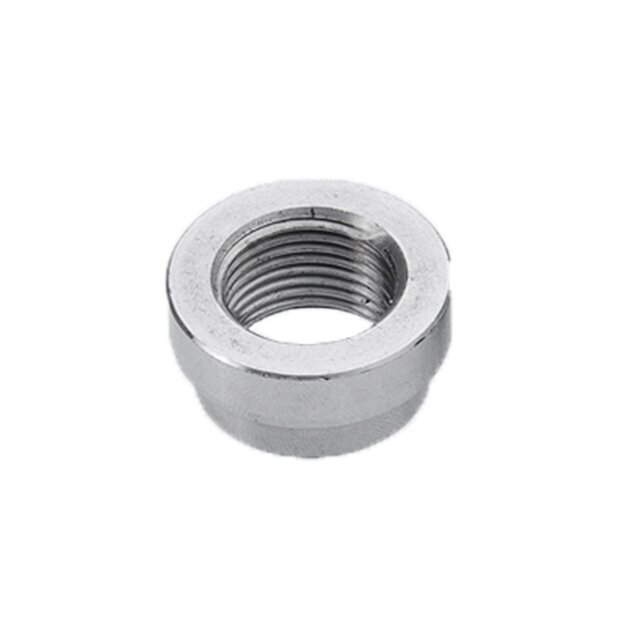

Weld-in oxygen sensor bung for a compatible sensor port in the exhaust pipe. The shoulder helps locate the bung in the prepared hole before welding.
The thread accepts a sensor with a compatible connection.
The shoulder helps position the bung in the prepared pipe opening.
| Thread | M18 × 1.5 |
|---|---|
| Design | With locating shoulder |
| Material | Stainless steel |
| SKU | AR2047 |
For custom exhausts and measurement ports using a compatible oxygen sensor. Thread, sensor reach and measurement position must match the system.
Choose the location according to the sensor manufacturer?s instructions. Check material compatibility, prepare the hole and locate the shoulder. Weld with the sensor removed, allow to cool, clean the thread and install the sensor to its specified torque.
Thread size is only one criterion. Sensor reach, sealing face, measuring position and clearance for the sensor and wiring must also match.
Explore pipe connectors, clamps and components for your build. Select matching dimensions and configurations.
EXPLORE EXHAUST COMPONENTS >| SKU: | AR2047 |
| Material: | Edelstahl |
