ARLOWS · AR3277

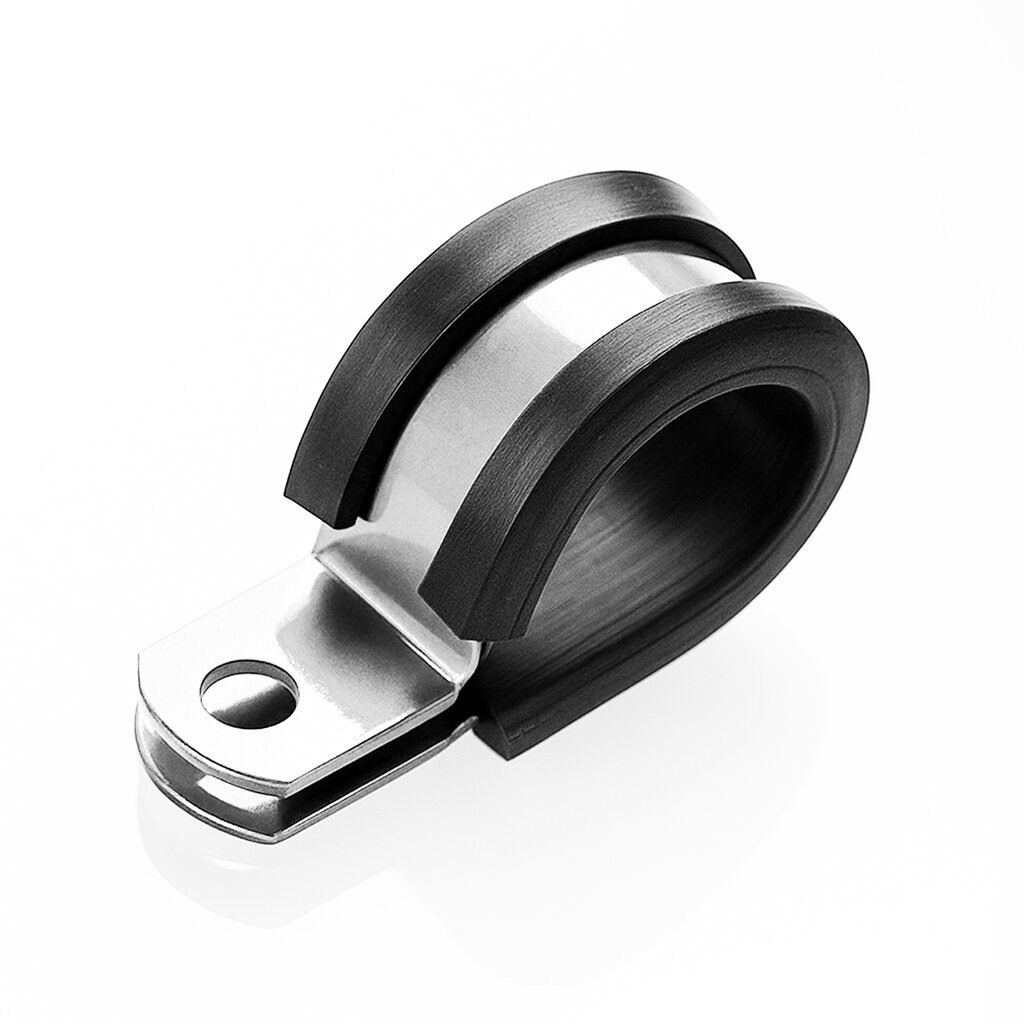

Arlows Aluminium hose mounting clamp Dash 8/Ø 15.80 mm ( Silver, rubber-lined )
Secure lines and protect contact points.
This aluminium mounting clamp has a rubber-lined inner surface. The lining separates the line from the metal clamp and helps prevent chafing at the mounting point. This version: Adjustment range: ± 0.5 mm. Internal diameter: Dash 8/Ø 15.80 mm.
Benefits at a glance
RUBBER-LINED INTERIOR
The inner lining protects the line from direct contact with the aluminium clamp.
SIZED FOR YOUR LINE
The internal diameter and stated adjustment range help you choose the correct version.
Technical specifications
| Adjustment range | ± 0.5 mm |
|---|---|
| Internal diameter | Dash 8/Ø 15.80 mm |
| Material | Aluminium |
| Colour | Silver |
| SKU | AR3277 |
Applications
For mounting compatible braided hoses, rubber hoses and aluminium tubes at suitable body mounting points. Base your selection on the actual outside diameter of the line.
Installation & notes
Match the clamp to the actual line outside diameter. Seat the rubber lining fully without folds. Install at a sound mounting point and close only enough to secure the line without crushing it. Keep clear of heat sources and moving parts.
Common question
What does the adjustment range refer to?
It refers to adjustment of the clamp. Tightening must not crush the line or reduce its cross-section.
