A banjo bolt for the matching connection.

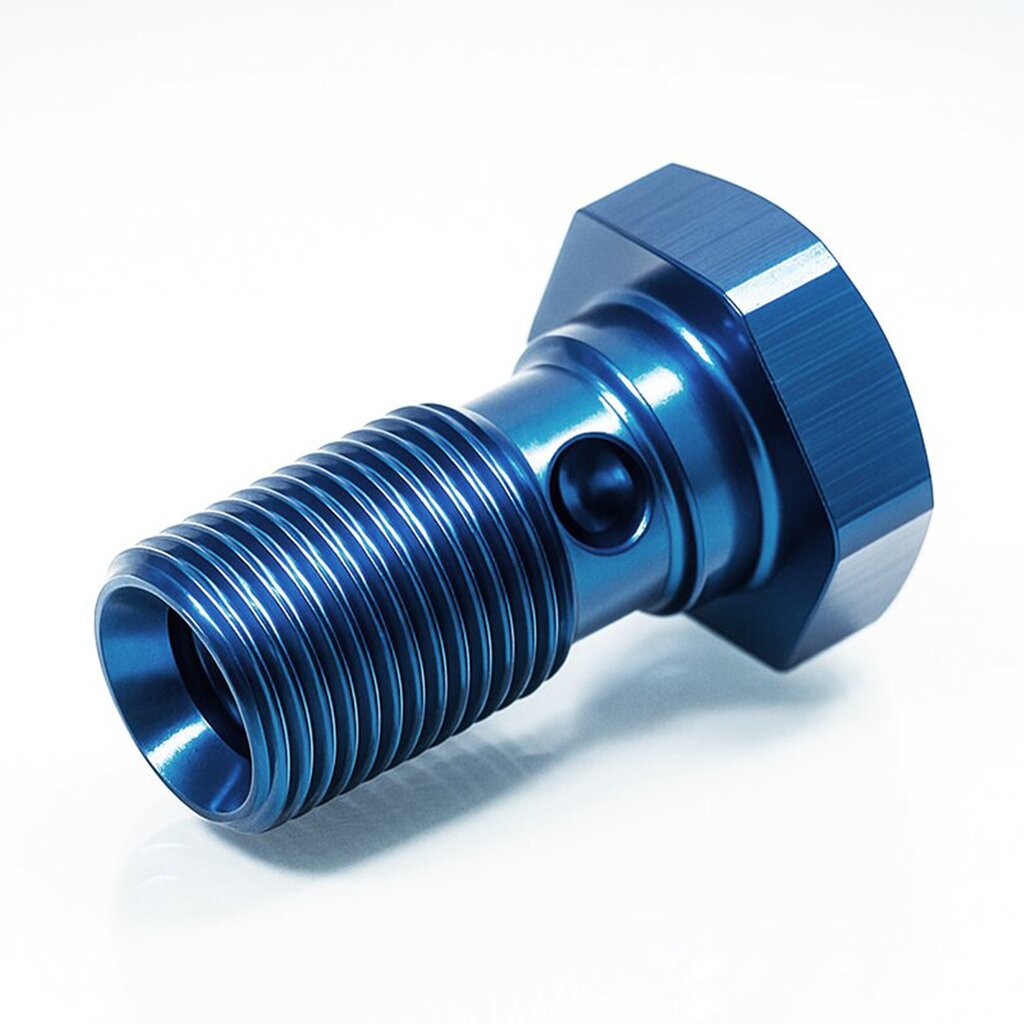

This aluminium hollow bolt connects a suitable banjo fitting to a matching threaded port. Its internal fluid passage allows the line to connect through the banjo. This version: Thread: M16 x 1.5. Length: 24 mm.
The thread specification helps you check the receiving port.
The stated bolt length helps you select a compatible combination of banjo fitting and seals.
| Thread | M16 x 1.5 |
|---|---|
| Material | Aluminium |
| Length | 24 mm |
| Colour | Blue anodised |
| SKU | AR2645 |
For compatible banjo assemblies. The thread, bolt length, banjo thickness and sealing surfaces must match the intended assembly.
Check the thread, bolt length, banjo thickness and sealing faces. Install suitable new sealing washers at the intended sealing positions. Start the bolt by hand and tighten to the connection component instructions. Keep the fluid passages unobstructed and leak-test before use.
No. Engagement depth, banjo thickness and the position of the fluid passages must also match the assembly.
Explore AN line components and accessories. Match sizes, sealing arrangements and hose construction before combining parts.
EXPLORE AN COMPONENTS >| Item number: | AR2645 |
| Colour: | Blue |
