Arlows 98 - 103mm HD-Schelle ( M8 Bolzen Schlauchschelle )

4,49 €

including 19% VAT. , plus (Paketversand)

From	Price per unit
4	4,27 €
5	4,27 €
10	4,13 €
20	3,95 €

Description

AR1904

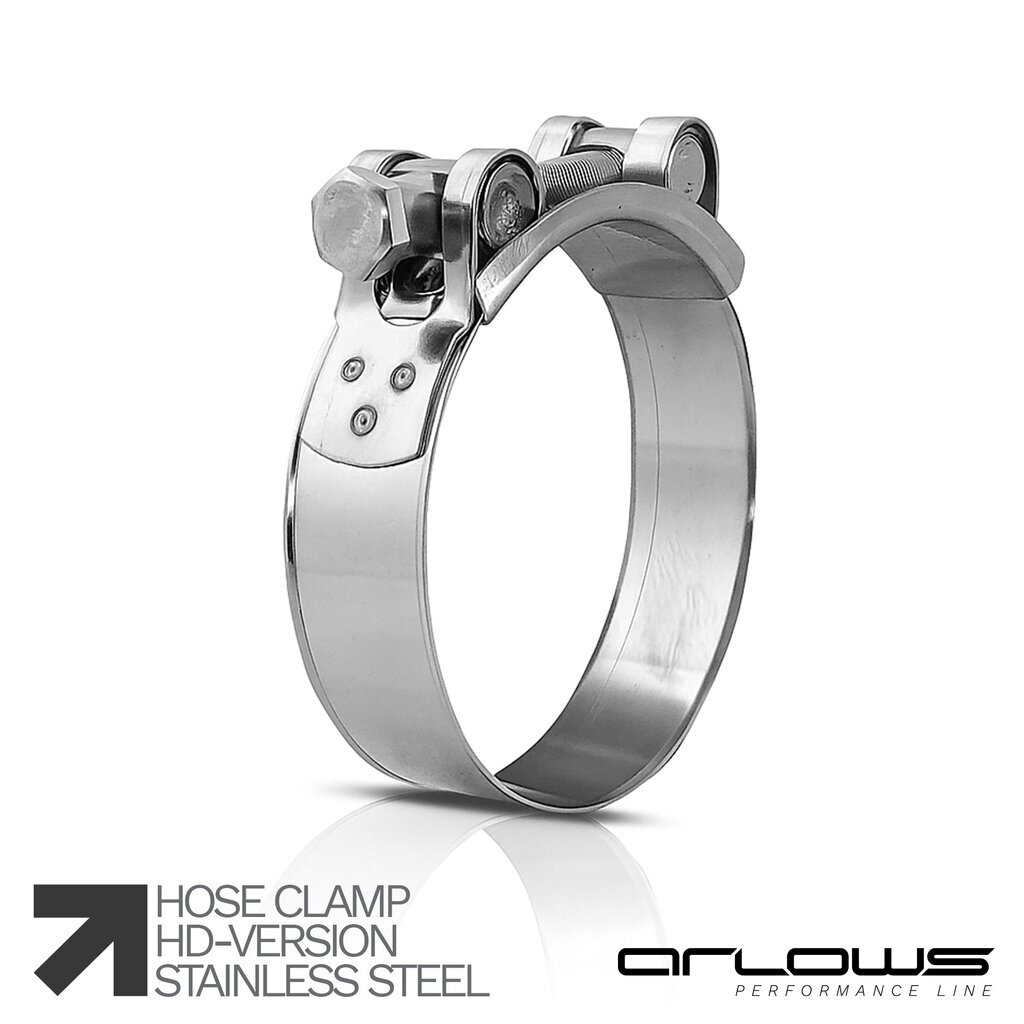

Arlows stainless hose clamp ( 98 - 103 mm )

Wide band clamp for charge-air hose.
Wide band clamp for charge-air hose. Range ( 98 - 103 mm ). Stainless, bolt curved to the clamp radius, 19 mm band.

BAND

A wide band sits on the silicone instead of cutting a narrow edge.

STAINLESS

Clamp and bolt in stainless. For charge air, not meant as a fuel clamp.

RADIUS

The bolt follows the clamp radius and pulls up evenly.

SIZE

The range is the inside of the clamp. Add the silicone wall.

Use cases

Charge-air hose on aluminium or stainless pipe
Silicone reducers and elbows
Not for raw fuel

Technical data

Part number	AR1904
Range	( 98 - 103 mm )
Width	19 mm
Thread	M5
Spanner	10 mm

Fitment

Deburr the mating part. Tighten the clamp or fan only once it sits. Check direction and diameter before fitting. Do not exceed the stated voltage or pressure.

Matching parts?

Charge air or water and oil

SHOP CATEGORY >

Item number:	AR1904
weight‍:	0,1KG
