Arlows 44 - 47mm HD-Schelle ( M6 Bolzen Schlauchschelle )

3,90 €

incl. 19% VAT , plus (Paketversand)

From	Unit price
4	3,70 €*
5	3,70 €*
10	3,59 €*
20	3,43 €*

Available now!
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

AR1894

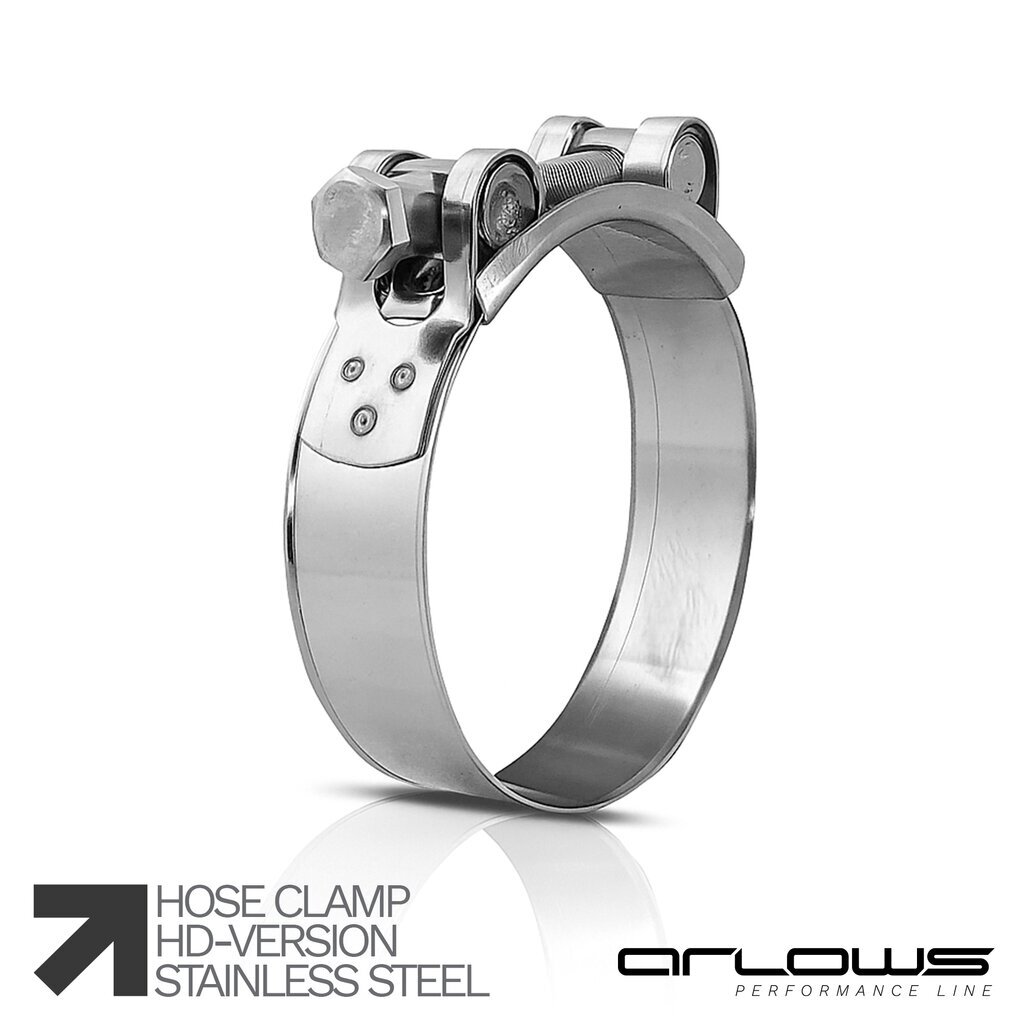

Arlows stainless hose clamp ( 44 - 47 mm )

Wide band clamp for charge-air hose.
Wide band clamp for charge-air hose. Range ( 44 - 47 mm ). Stainless, bolt curved to the clamp radius, 19 mm band.

BAND

A wide band sits on the silicone instead of cutting a narrow edge.

STAINLESS

Clamp and bolt in stainless. For charge air, not meant as a fuel clamp.

RADIUS

The bolt follows the clamp radius and pulls up evenly.

SIZE

The range is the inside of the clamp. Add the silicone wall.

Use cases

Charge-air hose on aluminium or stainless pipe
Silicone reducers and elbows
Not for raw fuel

Technical data

Part number	AR1894
Range	( 44 - 47 mm )
Width	22 mm
Thread	M6
Spanner	10 mm

Fitment

Deburr the mating part. Tighten the clamp or fan only once it sits. Check direction and diameter before fitting. Do not exceed the stated voltage or pressure.
